Basic Operation
DSO8000E Series HandHeld Oscilloscope User Manual 20
Chapter 5 Basic Operation
The front panel of the oscilloscope is divided into several functional areas. In this chapter we will
give a quick overview of all control buttons on the front panel as well as the displayed information
on the screen and relative testing operations. The figure below illustrates the front panel of the
DSO8000E series digital oscilloscope.

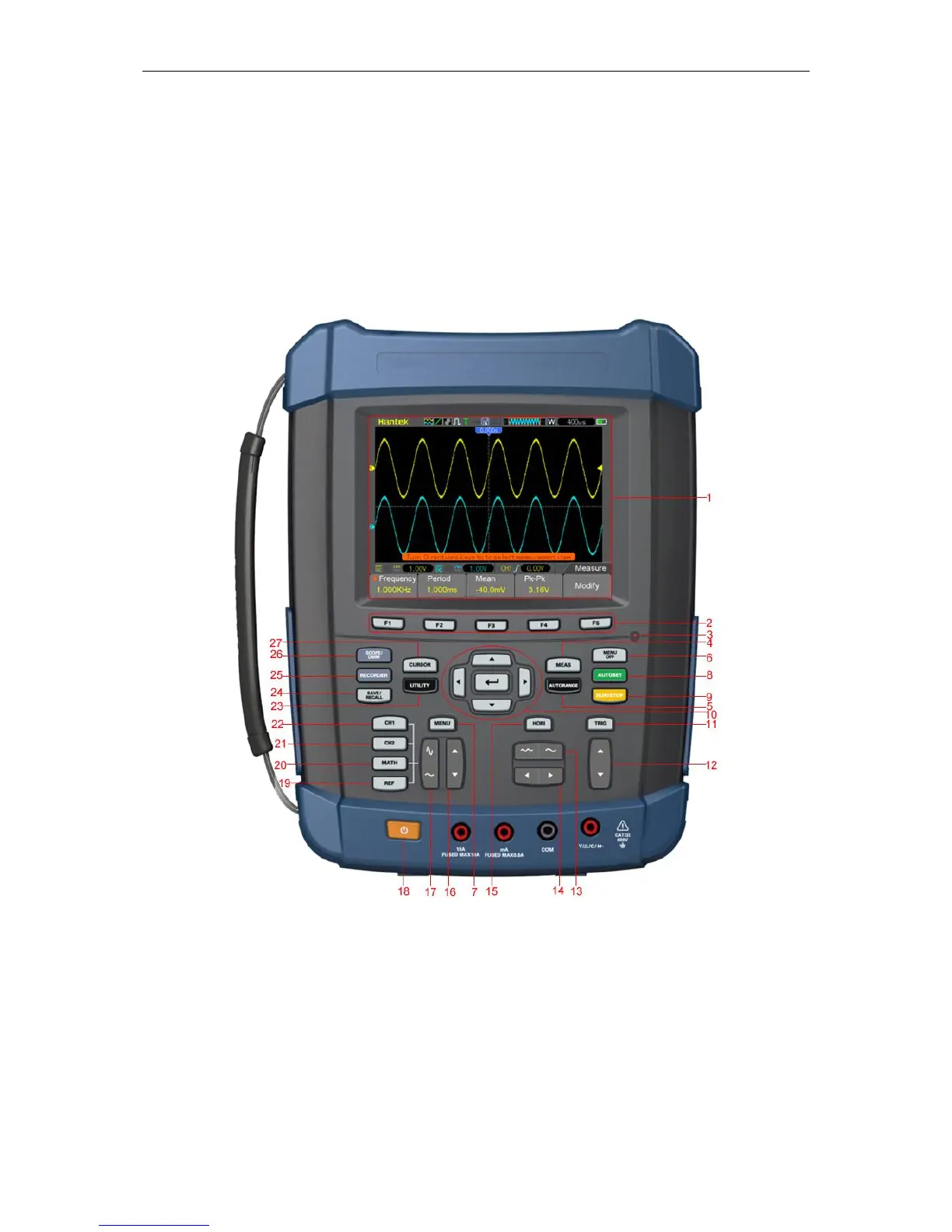

Front Panel of DSO8000E Series
Description
1. LCD Display
2. F1~F5: Sets or switch options for the menu
3. Power light.
4. MEAS: Shows Measurement menu
