Hantek DSO8000E Series - Edit Arb Waveform by Slave Computer

Waveform Generator
DSO8000E Series HandHeld Oscilloscope User Manual 89
The relation: Frequency =
1
Size∗Deltatime
.

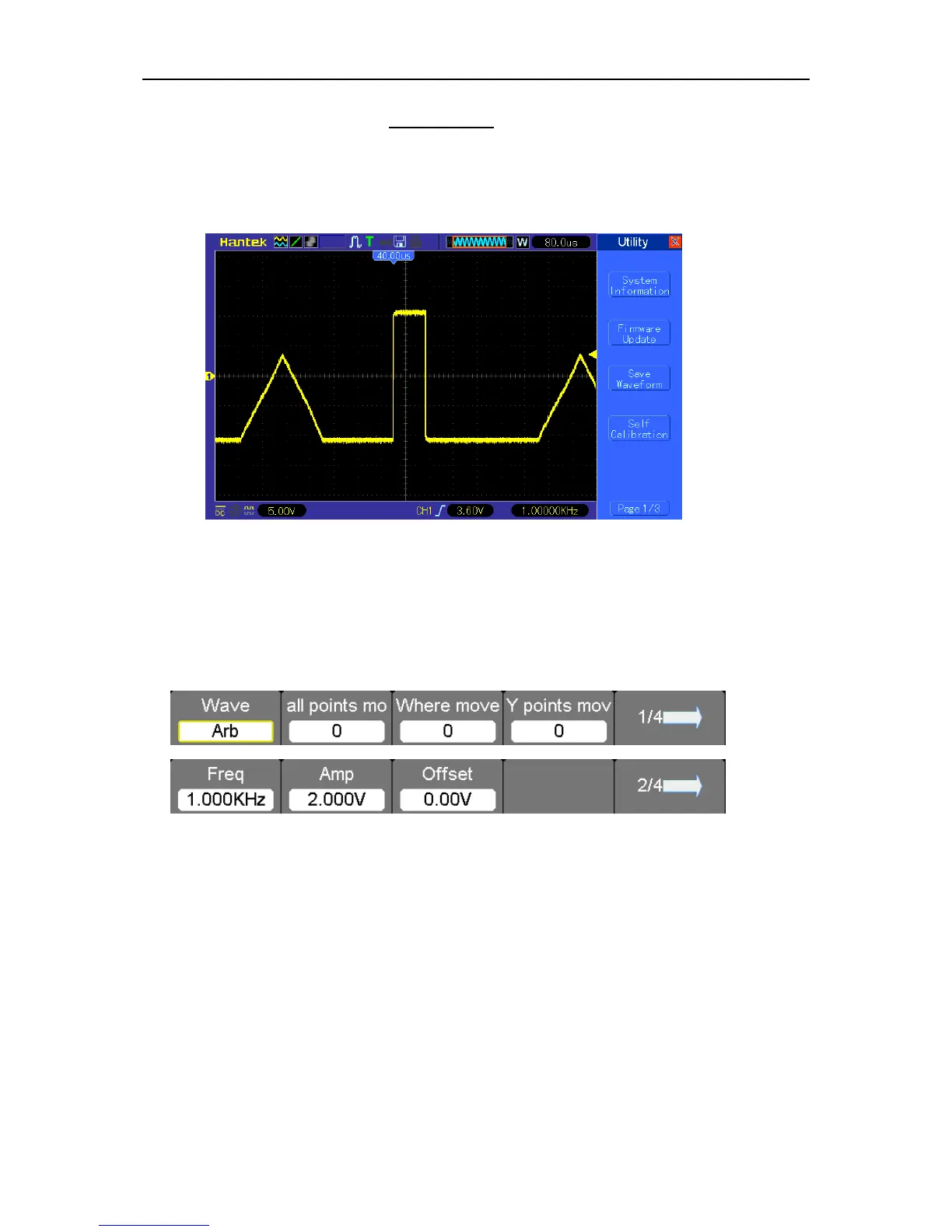

Insert U disk to the USB port of the device, select wave as "Arb". Then press "Recall"
menu to recall saved file. View the waveform by oscilloscope as follows:
9.2.2 Edit Arb waveform by slave computer
1. Press F1 button to select "Arb".
2. Set the Wave Parameter
All points move: The setting quantity of the X axis points.
Where move: Where to start setting.
Y points move: The setting quantity of the Y axis points.
Frequency: Set the output wave frequency.
Amplitude: Set the output wave amplitude.
Offset: Set the output wave vertical level offset.
3. Output waveform： Set output type to continuous, single or OFF.
 Continuous: Continuous output waveform.
Ext Trig:
External trigger signal port: For the model of waveform generator function, it can be used as an
external trigger of the oscilloscope and waveform generator.
