Application Examples
DSO8000E Series HandHeld Oscilloscope User Manual 55
Example 3: Analyzing Input Signals to Eliminate 6.3
Random Noise
In certain circumstances, to display a noisy signal on the oscilloscope and to get its details, you
may follow the steps below to analyze this signal.
Observing Noisy Signal
1. Enter the Acquire menu.
2. Push the Type option button and select Real Time.
3. Push the Peak Detect option button.
4. If necessary, enter the DISPLAY menu and set the Contrast option to view the noise more
clearly.

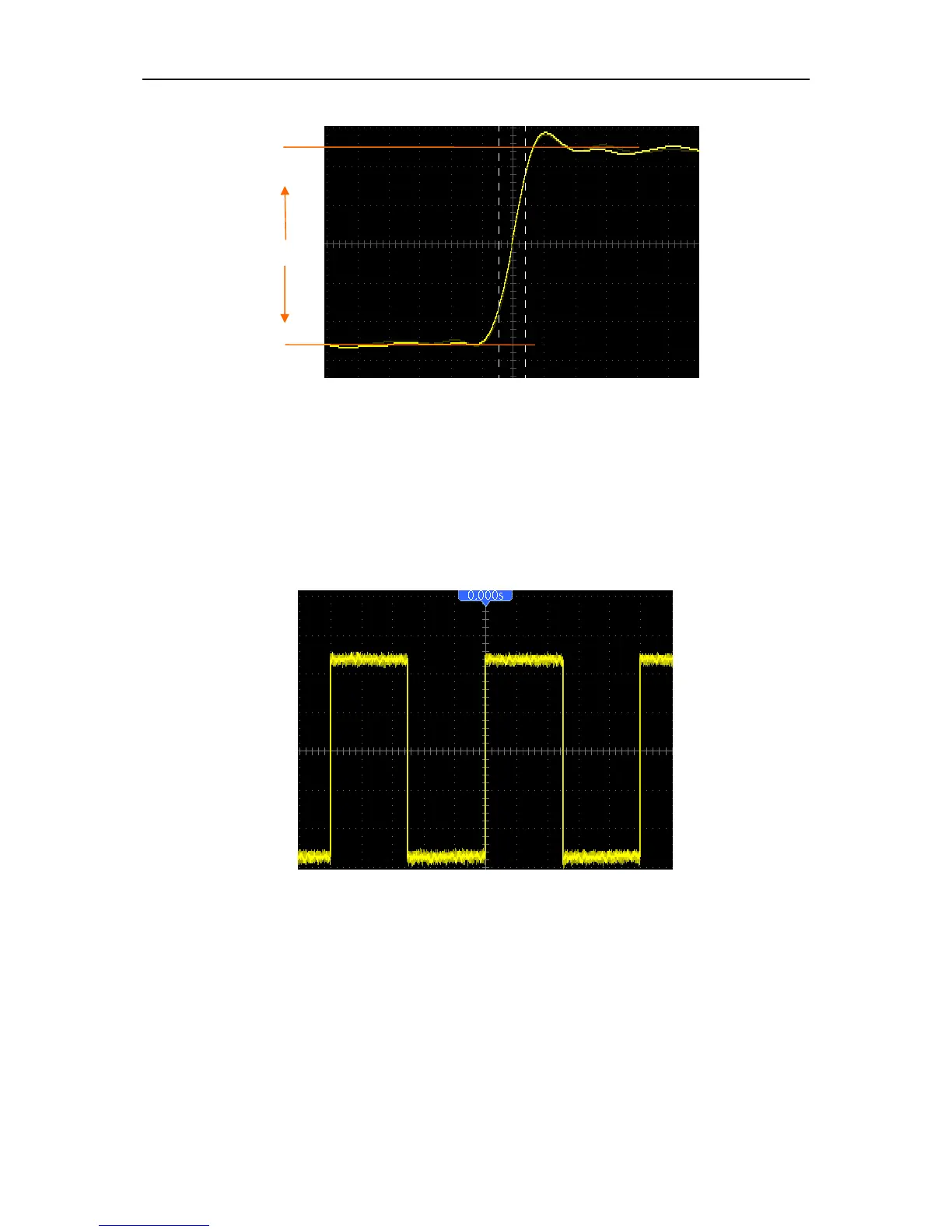

See the figure below for better understanding.
