Waveform Generator
DSO8000E Series HandHeld Oscilloscope User Manual 90

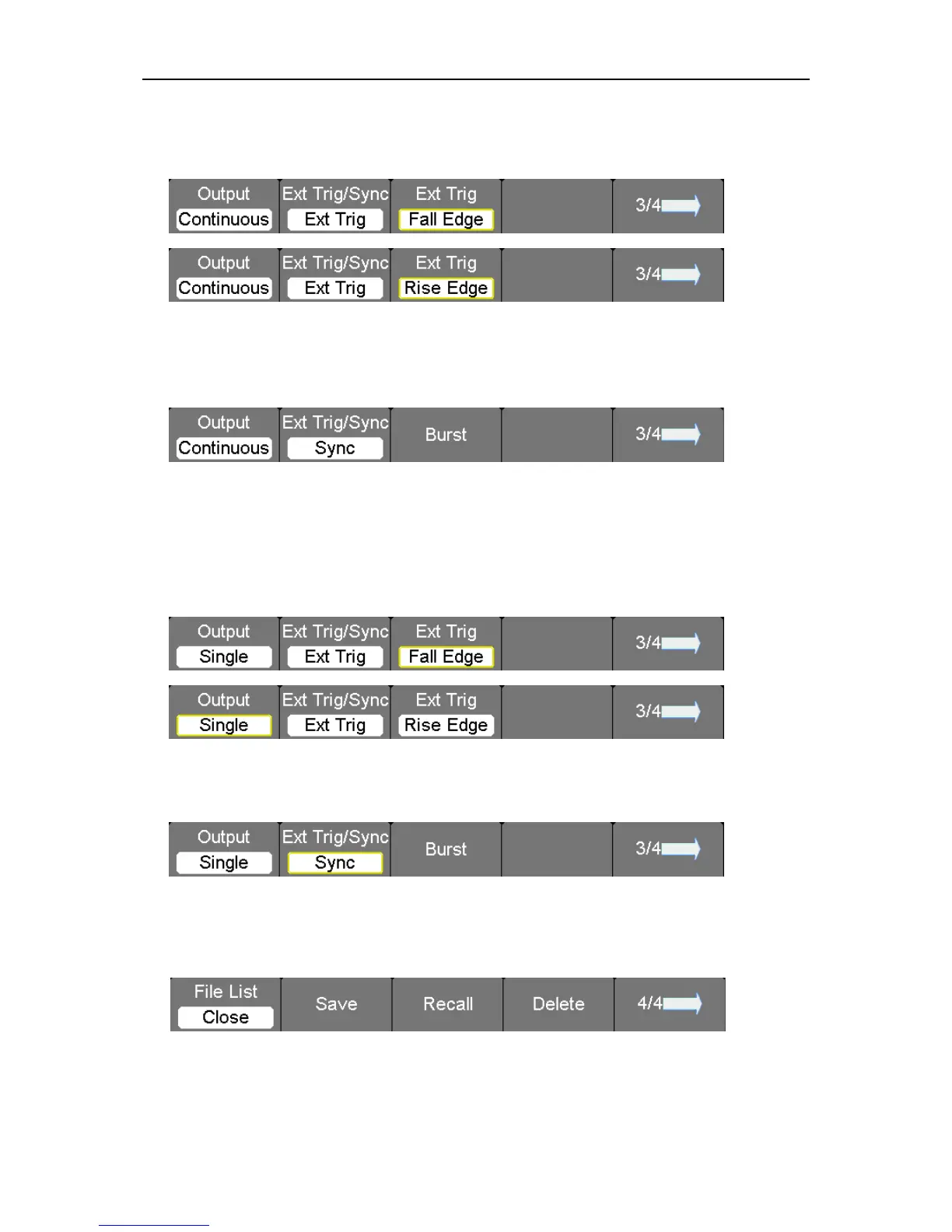

When an edge of the external trigger signal is triggered, even if the external trigger signal is
disconnected, the waveform can be output continuously. If the external trigger signal is
disconnected, only when the settings are changed, the settings in the front will be cleared.
Sync:
Synchronized output port: Only for the model with waveform generator function.
Burst: Press the button, the signal will output continuous; Press the button again, the signal will
stop output. Sync output is synchronized signal of output.
 Single: Press once, output waveform once.
Ext Trig:
When an edge of the external trigger signal is triggered, the signal output once. If the external
trigger signal is continuous, the waveform can output continuously. If the external trigger signal
is disconnected, the waveform will stop output.
Sync:
Burst: Press the button once, a cycle waveform output once; if you do not press, no signal
output. Sync output is synchronized signal of output.
 OFF: Not output wavefrom.
4. Save, recall or delete .csv file
Save: Save the edited waveform as .csv file in U disk.
Recall: Load .csv file in U disk.
Delete: Delete .csv file in U disk.
