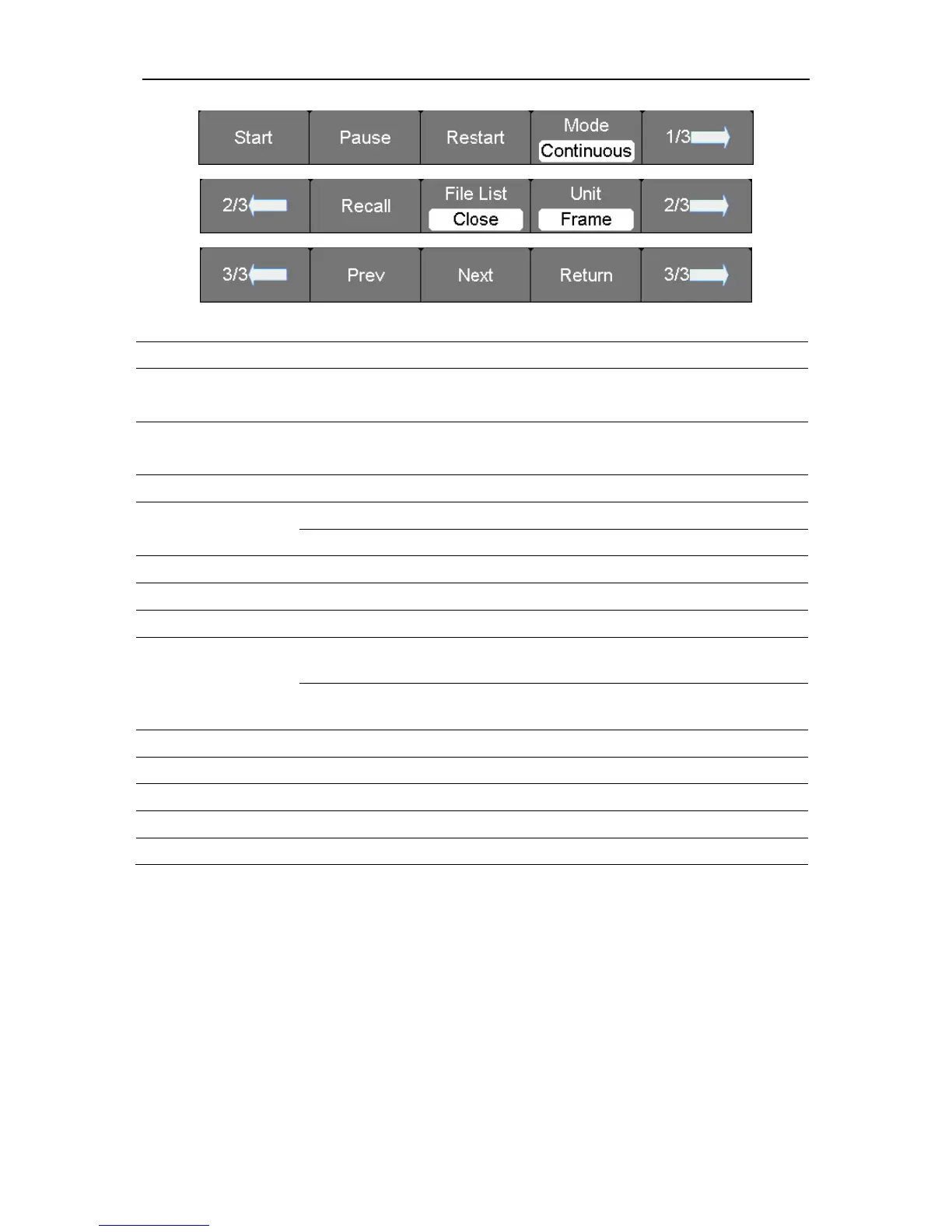

Waveform Recorder Replaying Mode Function Menu
Option
Instruction
Start
Pause playing waveform automatically, you can change the time base to
observe the waveform in the memory.
Pause
Continue playing waveform automatically, you can change the time base
to observe the waveform in the memory.
Restart
Replay the waveform
Mode
Continuous:
Single:
1/3
Enter the second page of the menu.
Recall
Recall the waveform stored in the memory
File List
Open or close file list
Unit
Frame: When replaying the screen waveform updates the whole screen
according to the time of sampling every frame data
Point: When replaying, the screen waveform updates every dot from left
to right.
2/3
Enter the third page of the menu.
Prev
Back the waveform and then play.
Next
Speed the playing of the waveform.
Return
Exit the replaying menu.
3/3
Return to the first page of the menu
Waveform recorder application example
Startup the waveform recorder function:
1. Press【Recorder】 to open the main menu.
2. Press【F3】to choose scopeRec.
3. Press【F1】to set the waveform recorder. Such as set “Continuous” and “Single”.
4. Press【F1】to start recording data.
The waveform will not move right and the recorded data saved to memory. The recorded time will
be different according to the time base. You can pause or stop at any time.
Waveform replay
