HARDI CONTROLLER 5500
Menu 5 Logbook
This menu has to do with dumping and printing of data.
Menu [5.1 Print]
The following can be printed via the 12 volt printer.
[5.1.1 Register number] A specific register
[5.1.2 All registers] Register 1 to 99. Only active ones will be printed.
[5.1.3 Configuration] This records all the parameters of the Controller.

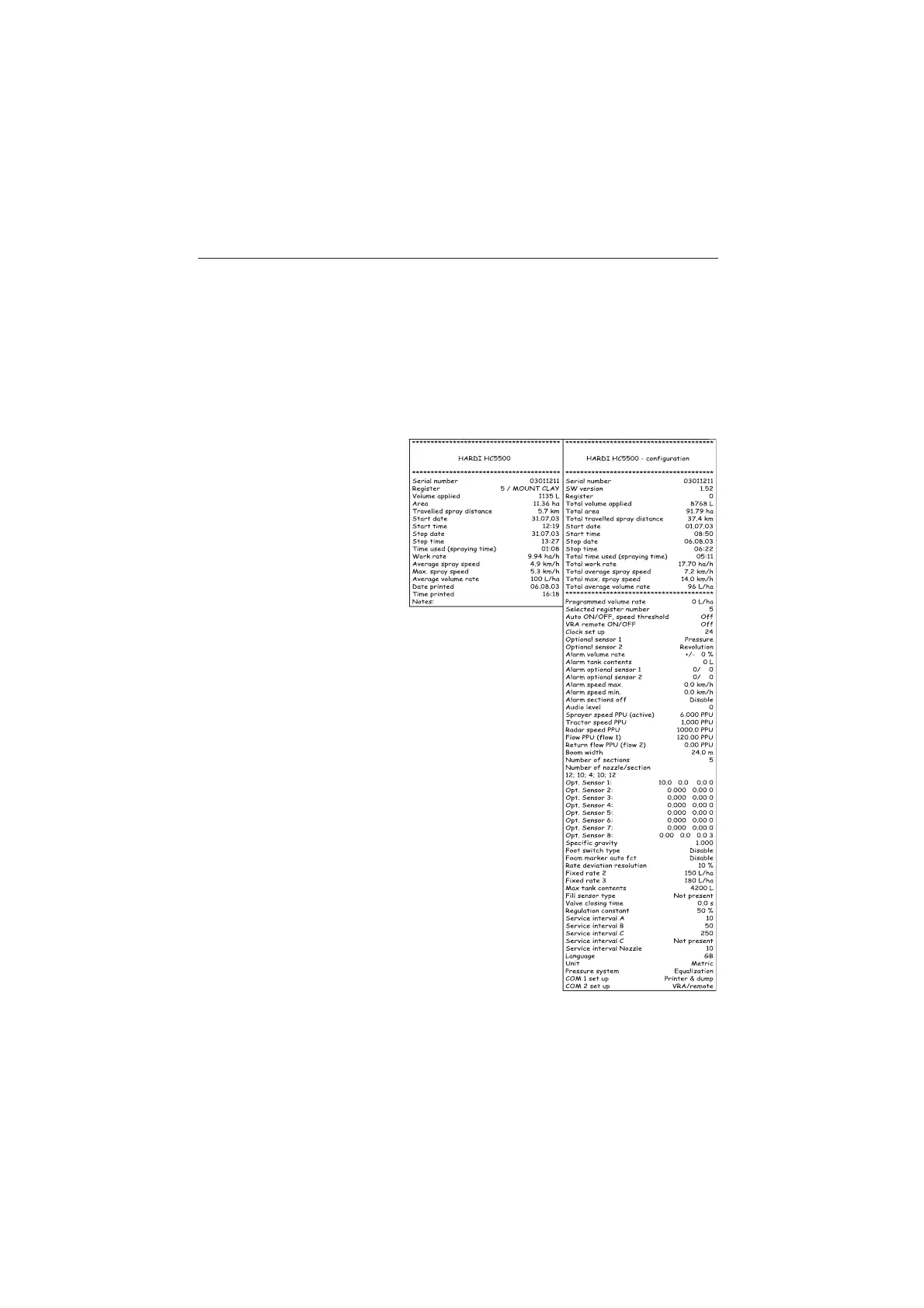

Two examples of printouts is
shown.
To the left is a printout of a
specific register (menu 5.1.1).
To the right is a printout of the
configuration (menu 5.1.3).
Menu [5.2 Data dump]
The following can be printed to an office printer.
This could be done for example, using the Hyper
Terminal function in Microsoft Windows.
Note the Hyper Terminal has to be activated and a
cable connection and 12 volt power supply to the
Controller and Spray Box is needed.
[5.2.1 Raw data]
[5.2.2 With header] Permits data to be set up with a column header.
