Adjustment of Folding Speed (Boom Width: 18-30 m)

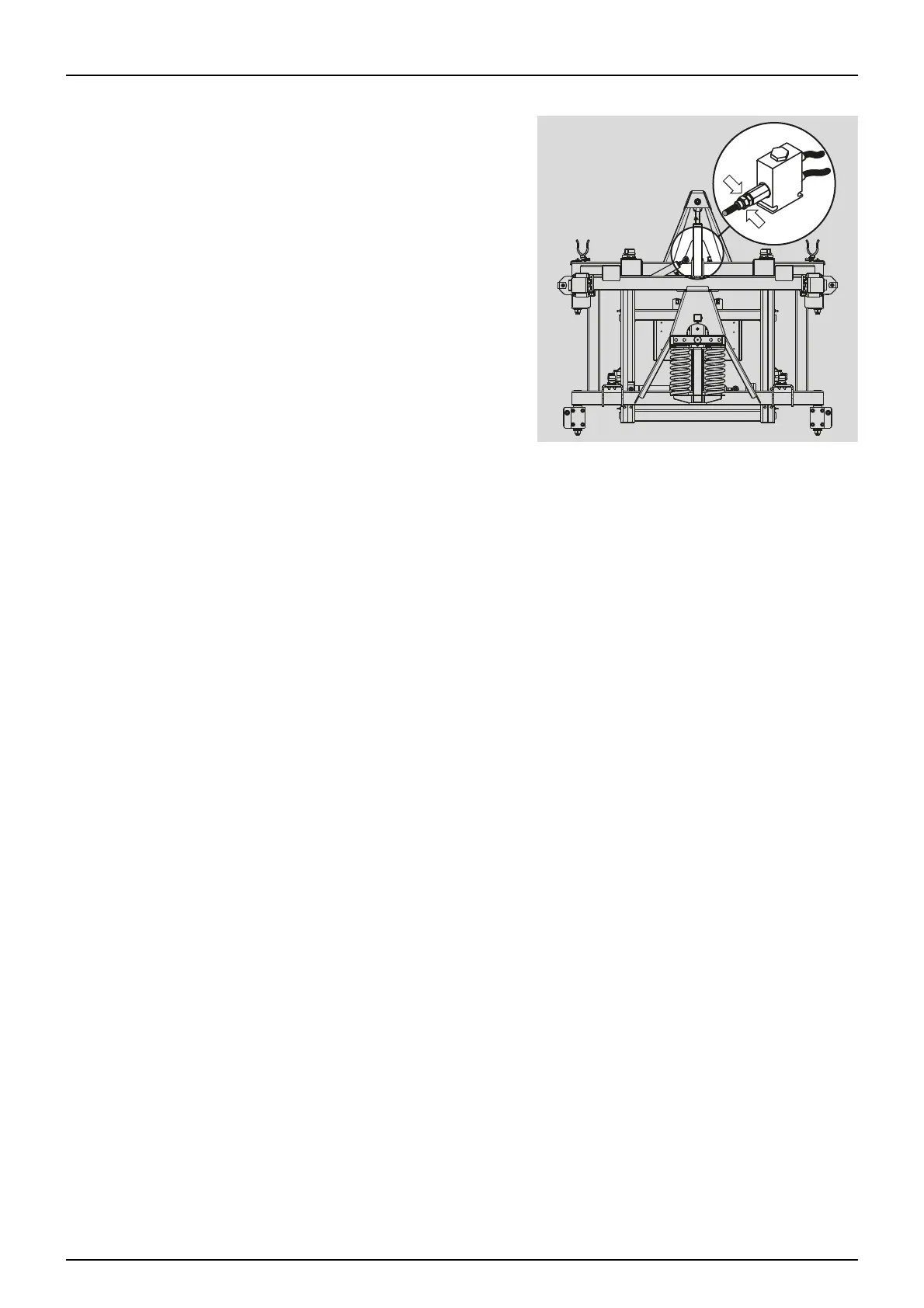

A restrictor is available for adjusting of boom folding speed - one
restrictor for both boom wings. The restrictor is located near the big
pendulum damping cylinder.
To Decrease Folding Speed
• Loosen counternut (at the arrows).
• Screw the valve inwards.
• Tighten the counternut again.
To Increase Folding Speed
• Loosen counternut.
• Screw the valve outwards.
• Tighten the counternut again.
μ
ATTENTION! The system must be depressurized during
adjustment.
