4 - Sprayer Setup
84
Mechanical Connections
Drawbars

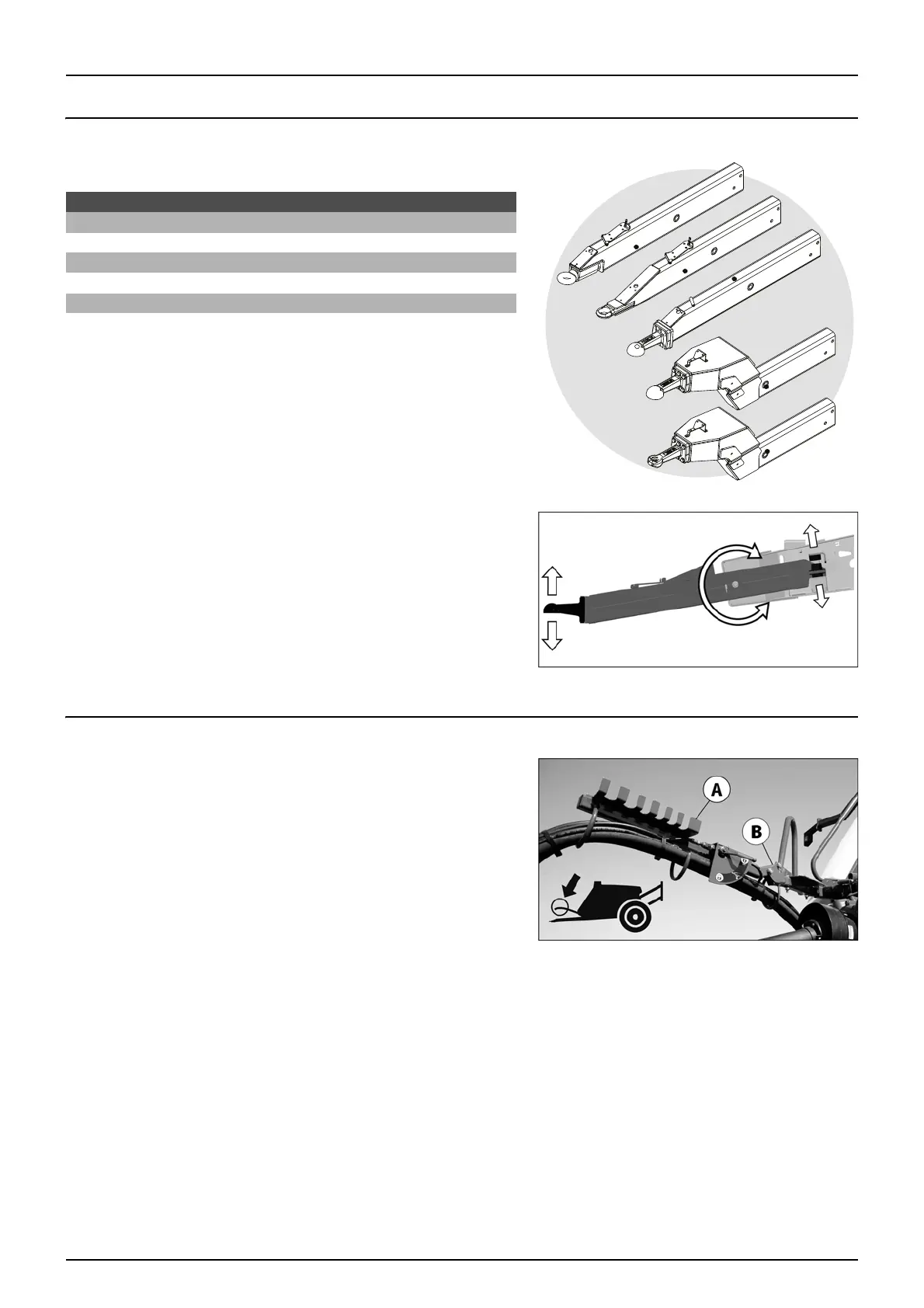

Following drawbar systems are available:
*not for COMMANDER 5500 and 7000 models.
Suspended Drawbar
For COMMANDER 5500 and 7000 models the drawbar is fully suspended.
The full vertical load from the sprayer to the tractor is transferred through
rubber dampers, which are built into the chassis.
Hose Package Support
To prevent hoses and wiring from being damaged by the tractor wheels
or the PTO shaft, all hoses, cables and wires are held by the hose package
support fitted to the sprayer platform.
The bracket (A) is for the storing of hydraulic and electric connectors etc.
when the sprayer is disconnected from the tractor. The height of the
bracket can be adjusted by the means of the bolts (B).
μ
ATTENTION! A sprayer with steering requires more slack in the
cables. Make sure that the hoses and cables are long enough in
tight turns, when fully steered.
Drawbar Hitch type Attachment High/low hitch
A Swivel Ø50/33 Welded Low
B* Hitch Ø50 Welded Low
C Scharmüller Kugel K80 Bolted Low
D* Scharmüller Kugel K80 Bolted High
E* Zugmaul Ø40 high Bolted High
A
B
C
D
E
