3 - Description
54
Filters
Filters on your sprayer are there to protect the components and prevent nozzle clogging.
An EasyClean suction filter is fitted in the working zone.
A Cyclone pressure filter is fitted on the sprayer’s right side just in front of the hose reel, hidden behind the right front cover.
It has a built-in self-cleaning function.
In-line pressure filters can be fitted at each boom section.
Nozzle filters are fitted at each nozzle.
A coarse filter is located below the top cover for the main tank.
μ
ATTENTION! All filters should always be in use and their function should be checked regularly. Pay attention to the
correct combination of filter and mesh size. For more, see the chapter “Technical Specifications” in this book.
μ
ATTENTION! Always run your sprayer with cleaned filters to ensure proper functions and to protect the interior of the
pump and valves.

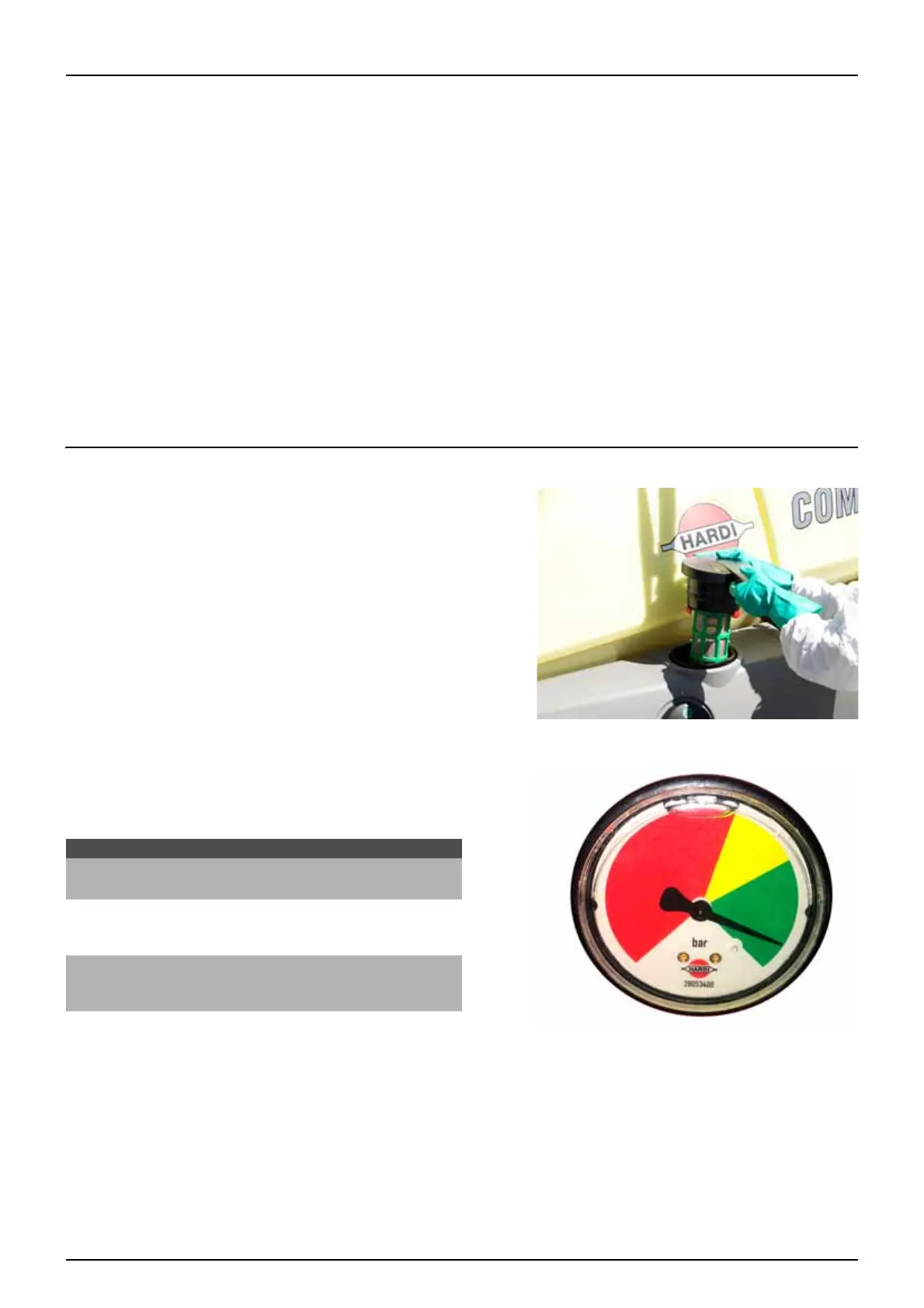

EasyClean Filter
This filter collects impurities, when liquid is being sucked out of the main
tank by the main pump.
To ensure proper function of the filter and its built-in valve, the filter
must be opened at least once every month. A label on the lid also
designates this.
Besides the spray pressure gauge a clogging indicator is installed. This
works as a vacuum gauge for the filter during operation - the pointer
moves from green towards red, if the filter starts clogging.
Clogging indicator Filter condition
Green area 70 - 100 % capacity.
No cleaning necessary.
Yellow area 55 - 70 % capacity
It is possible to finish an ongoing spray job
and then clean the filter afterwards.
Red area 0 - 55 % capacity
Clean the filter immediately, as it is clogged
too much for proper function.
