3 - Description
76
Hydraulic Support Leg
This support leg supports the sprayer at the front, when it is not coupled to a tractor. When coupling the sprayer to a tractor,
the support leg can be raised or lowered to adjust the sprayer to fit the tractor’s hitch point.
See the section “Hydraulic Support Leg” on page 81 on how to use the support leg.
÷
NOTE! The hydraulic support leg is optional for COMMANDER sprayers up to 4500 litres.
For Sprayers up to 4500 Litres

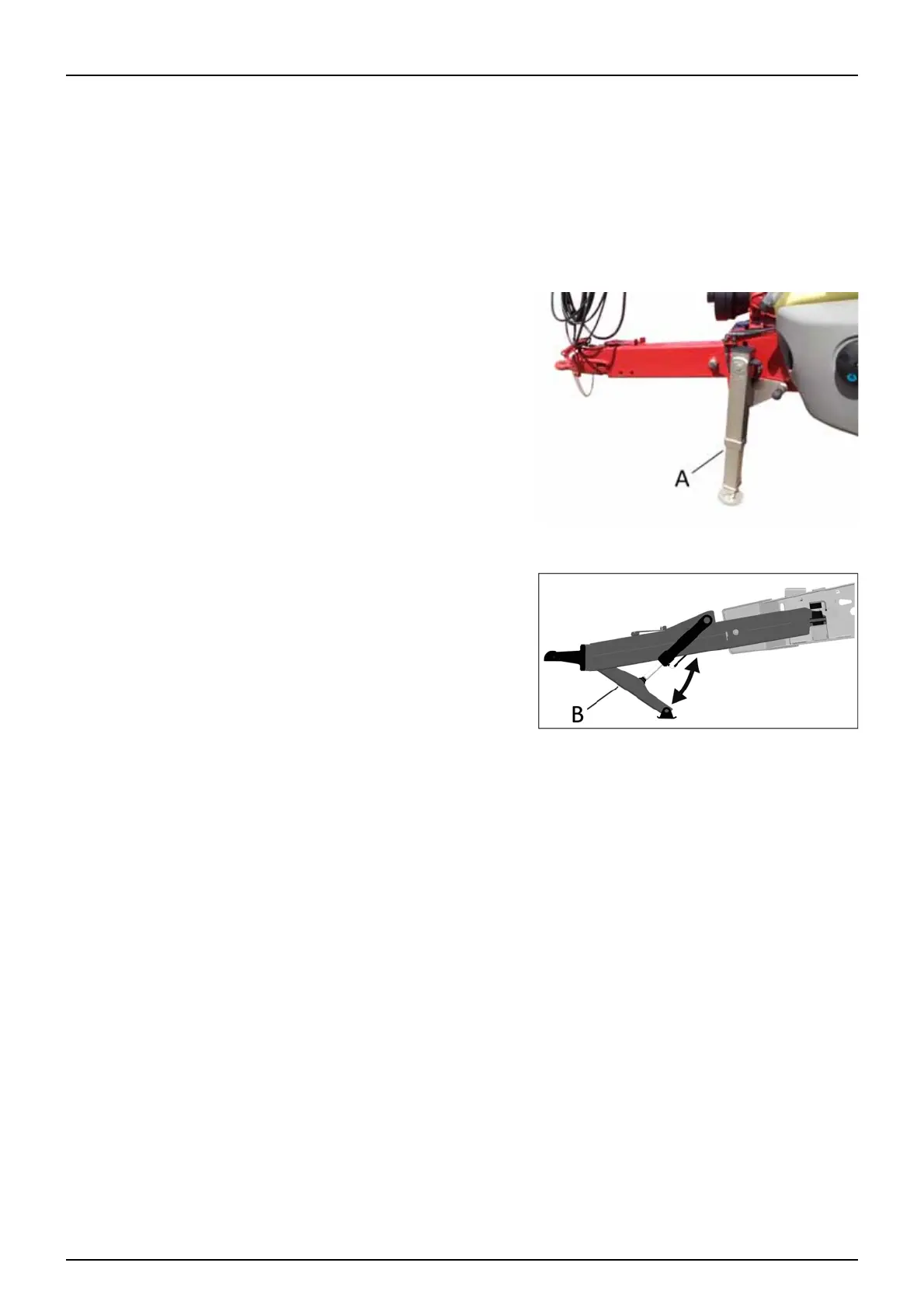

Illustration of the support leg (A) when standing on the ground.
This support leg is close to vertical when standing.
For Sprayers 5500 - 7000 Litres
Illustration of the support leg (B) when standing on the ground.
