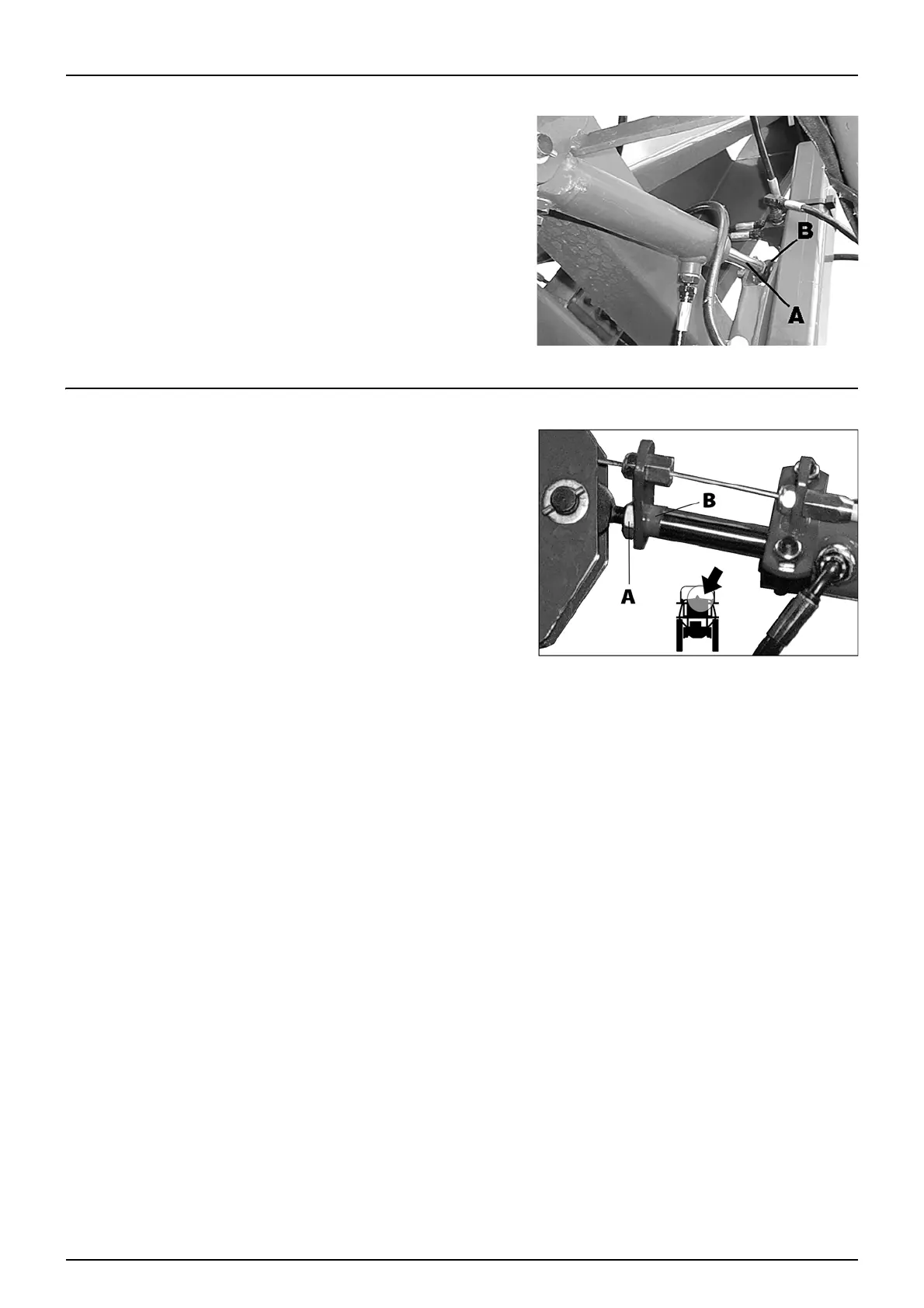

Adjustment of Slanting of Boom (Boom Width: 18 - 30 m)
Alignment of neutral position for the entire boom.
1. Place tractor and sprayer on even and flat ground.
2. Unfold the boom and set a neutral slant angle (no slant).
3. Hydraulic cylinder in the centre section:
Extract the piston rod (A) 90 mm.
4. Adjust the hinge ring (B) inwards or outwards, until the boom is
horizontal. Check with a spirit level.
Adjustment of Slanting of Boom (Boom Width: 32 - 36 m)
Alignment of neutral position for the entire boom.
1. Place tractor and sprayer on even and flat ground.
2. Unfold the boom and set a neutral slant angle (no slant).
3. Hydraulic cylinder in the centre section:
Extract the piston rod (A) 90 mm.
4. Adjust the hinge ring (B) inwards or outwards, until the boom is
horizontal. Check with a spirit level.
