6 - Maintenance
190

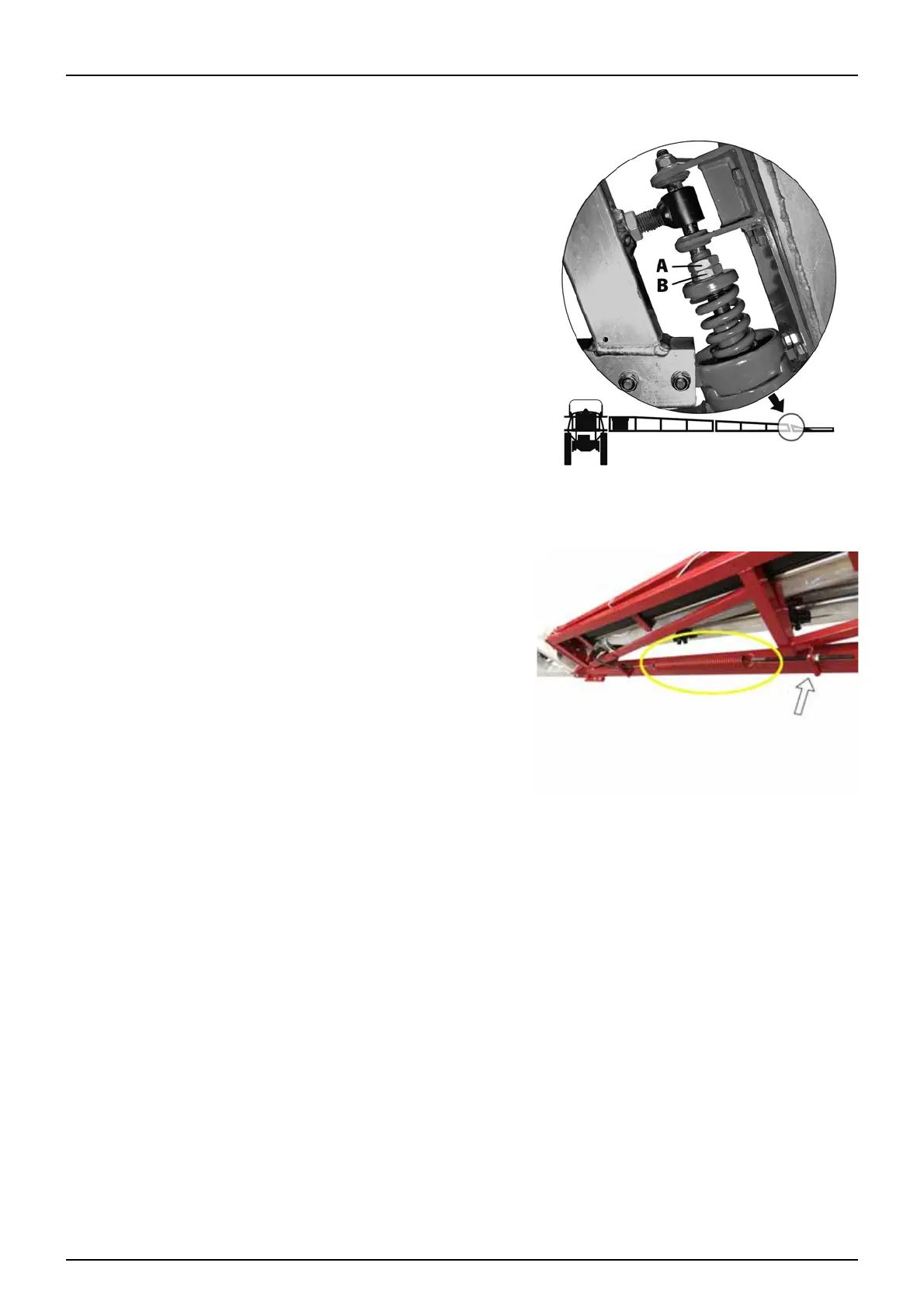

Adjustment of Breakaway Section
Connection type: Claw clutch
The breakaway section must release when a force of approximately 15
kg is applied to the end of the breakaway section. If necessary, the
release force is adjusted as follows:
1. Make sure that claw coupling is correctly lubricated.
2. Loosen the counter nut (A).
3. Adjust the nut (B) until the breakaway will release at a force of 15
kg applied at the end.
4. Tighten the counter nut again.
€
DANGER! Never place fingers into open breakaway clutch! Risk of
injury if the clutch closes accidentally.
±
WARNING! Do not tighten the breakaway clutch more than what
is described above. Risk of damage to the boom when the
breakaway is activated.
Connection type: Spring
• The tension for the spring-loaded breakaway is adjusted by
turning the nuts marked by the arrow.
Factory setting:
• Connect the spring in its relaxed state (no tension).
• Pull the spring out 100 mm.
