3 - Description
59

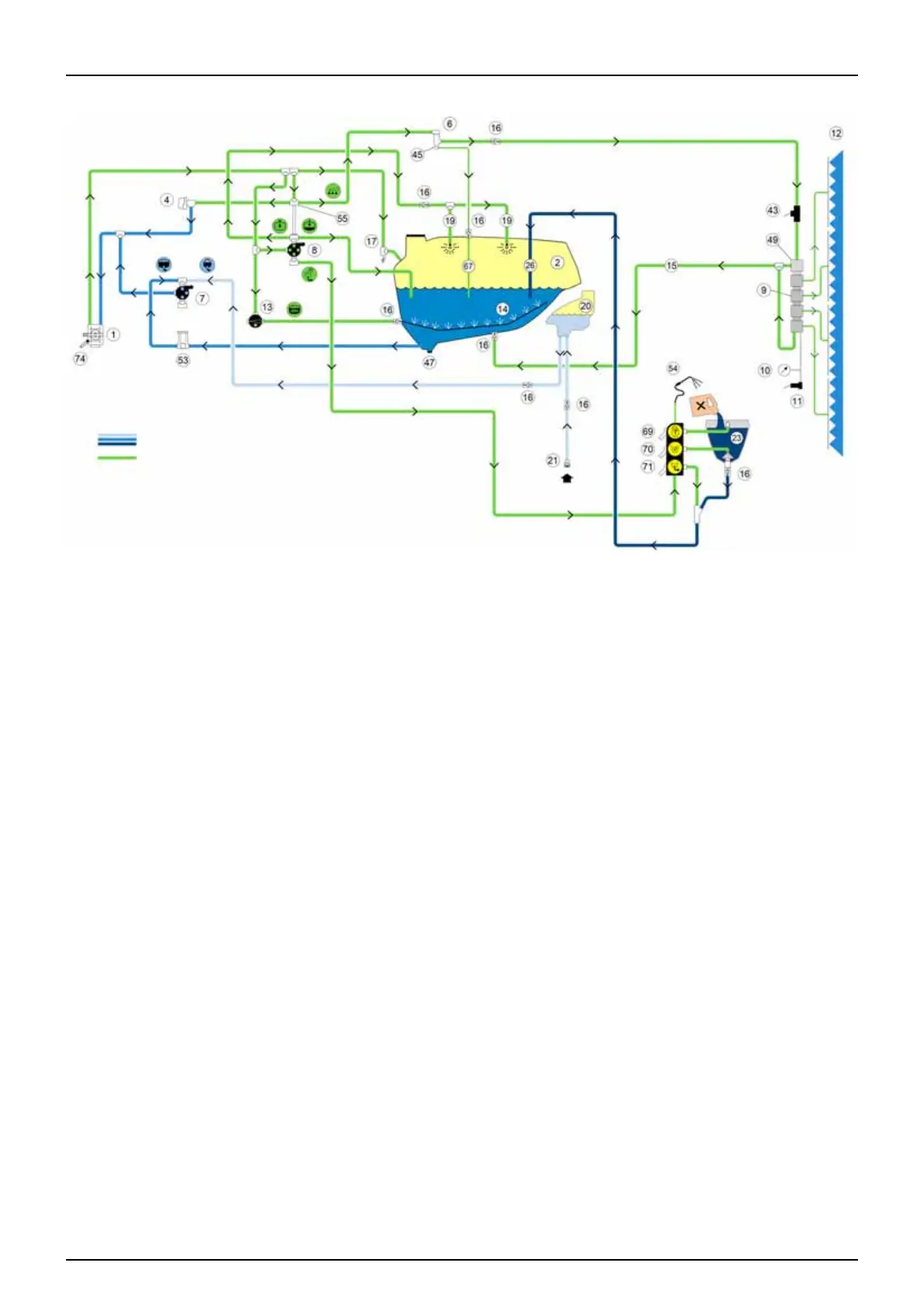

Diagram - Basic Liquid System
1. Main Pump
2. Main Tank
4. Pressure Regulation Valve
6. CycloneFilter
7. Suction SmartValve
8. Pressure SmartValve
9. Distribution Valves
10. Pressure Gauge
11. Pressure Sensor
12. Spray Boom
13. Agitation Valve
14. Agitation Nozzles
15. Return Line to Main Tank
16. One-Way Valve
17. Safety Valve
19. Rinsing Nozzles
20. RinseTank
21. RinseTank Filling Coupler
23. TurboFiller
26. Tank Hose for TurboFiller
43. Flowmeter
45. Boost Valve
47. Drain Valve
49. Bypass Valve for Spray Boom
53. EasyClean Filter
54. Spray Gun for TurboFiller
55. Spray Valve
67. Return Line for Boost Function
69. TurboFiller Cleaning Valve
70. TurboFiller Deflector Valve
71. TurboFiller Section Valve
74. Speed Sensor for Pump
Suction lines
Pressure lines
To Next Page
