Installation of Control Unit Brackets

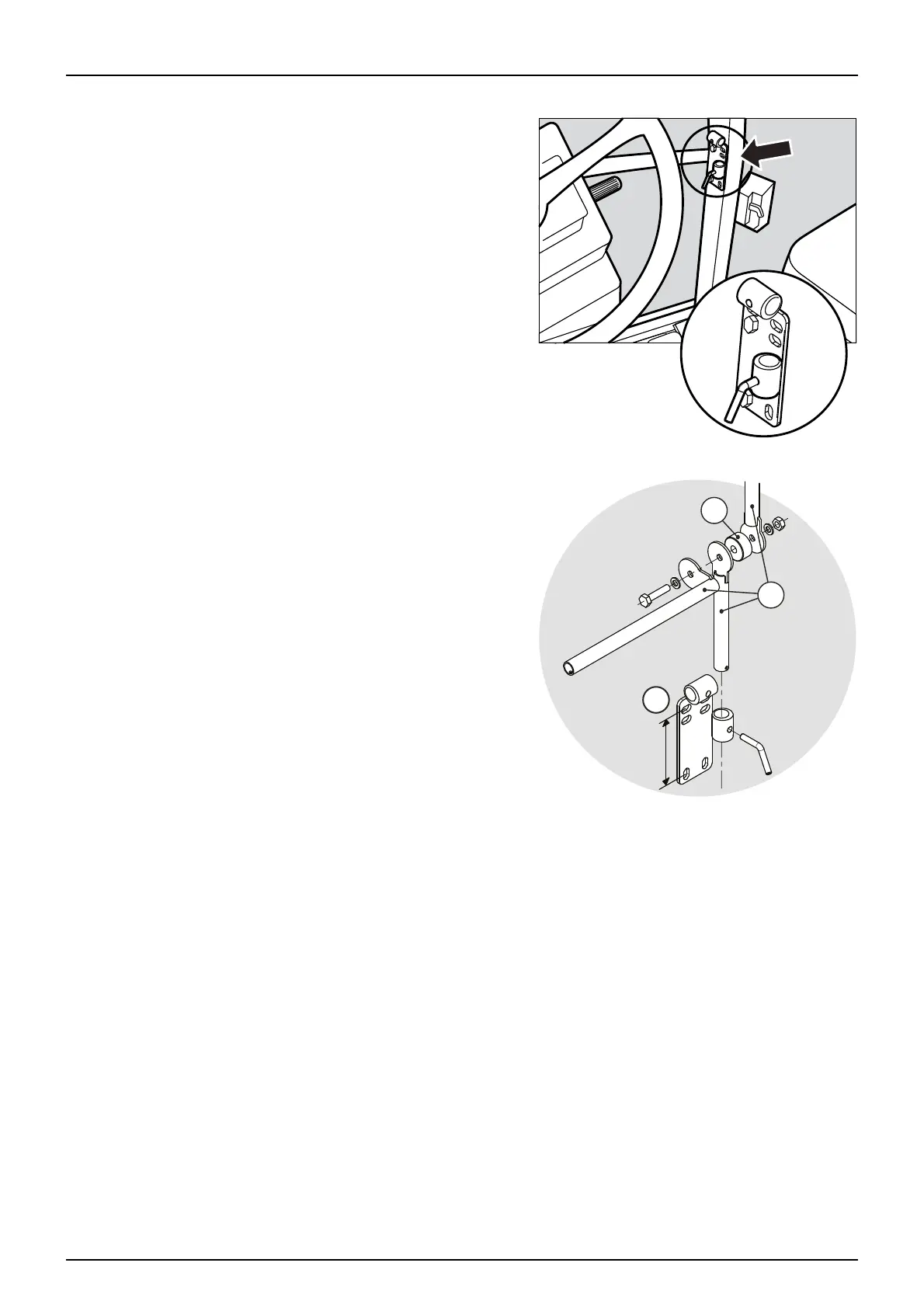

Find a suitable place in the tractor cabin to mount the control units.
Best recommended position is to the right of the driver seat.
The supplied tractor pillar bracket (A) has a hole spacing of 100 and 120
mm, which fits most tractors. Threaded mounting holes may be hidden
behind front corner cover. Check the tractor’s instruction book for
information regarding attachment points.
Three mounting tubes (B) are supplied. One, two or all three may be
used. They can be bent and shortened. A spacer (C) is also supplied to
allow further attachment possibilities. Find the best solution for your
tractor or vehicle.
Tube (B) plate is staggered so that, if correctly orientated, all boxes will
line up.
μ
ATTENTION! See also the controllers instruction book for further
details of fitting the controller equipment.
