4 - Sprayer Setup
81
Hydraulic Support Leg
The hydraulic support leg is activated via a separate hydraulic outlet on the tractor. Connect the hydraulic hoses from the
support leg to the tractor and test the function of the support leg carefully.
The support leg is positioned in its retracted position, when the sprayer is attached to the tractor.
For Sprayers Up To 4500 Litres
1. The sprayer’s drawbar is connected to the hitch point on the
tractor.

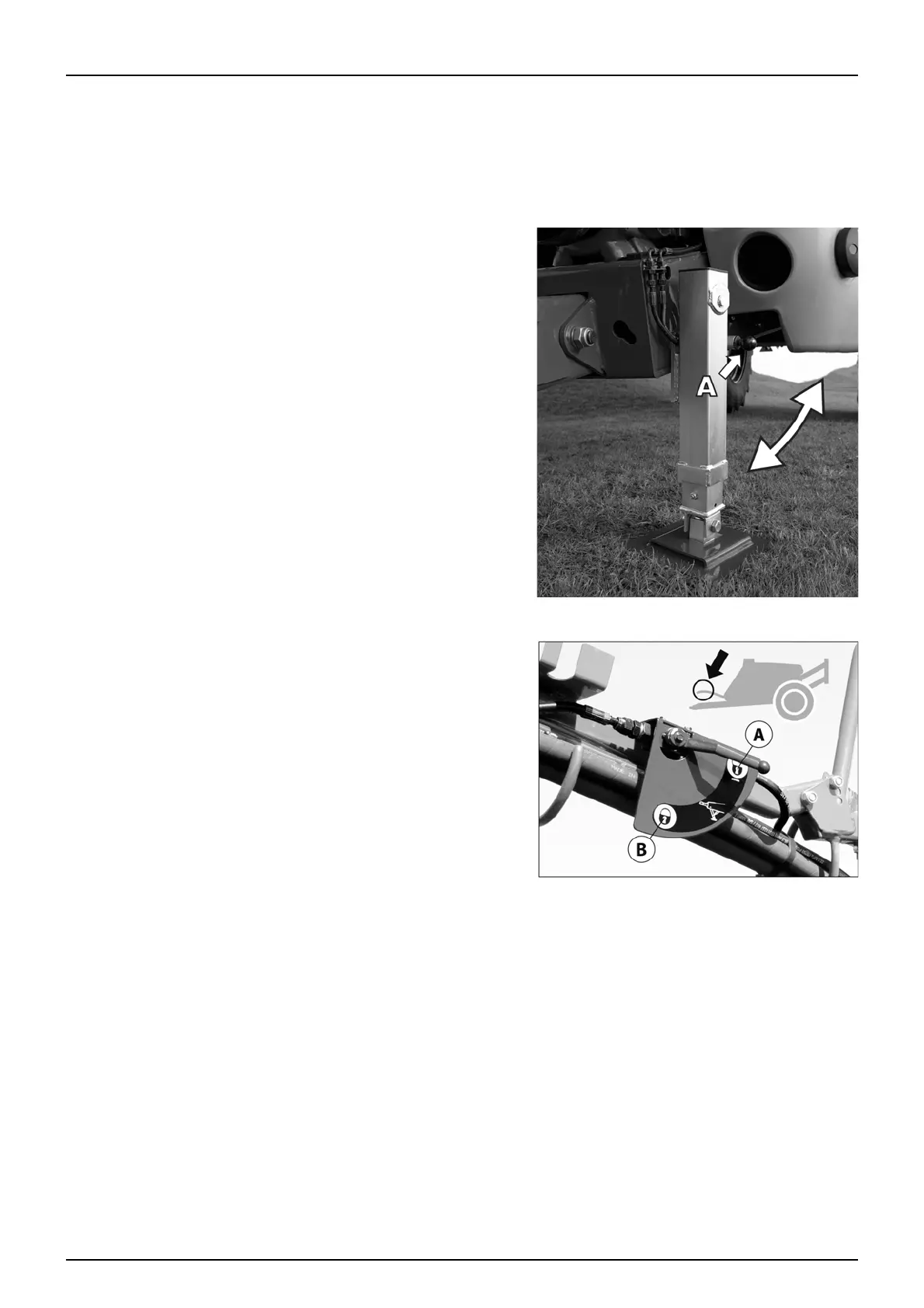

2. Pull the knob (A) to fold up/down the support leg to/from its
storing position.
3. Unlock the leg by turning the securing lever to position (A).
4. Use the tractor’s hydraulic lever to raise or lower the support leg.
5. Secure the support leg by turning the lever to position (B).
€
DANGER! Always double check that the lever is in the locked
position (B) when leaving the sprayer standing on the support
leg.
