Moving the Guide Rods at the Bottom
To make the boom even more passive, move the two guide rods at the
bottom of the boom centre.

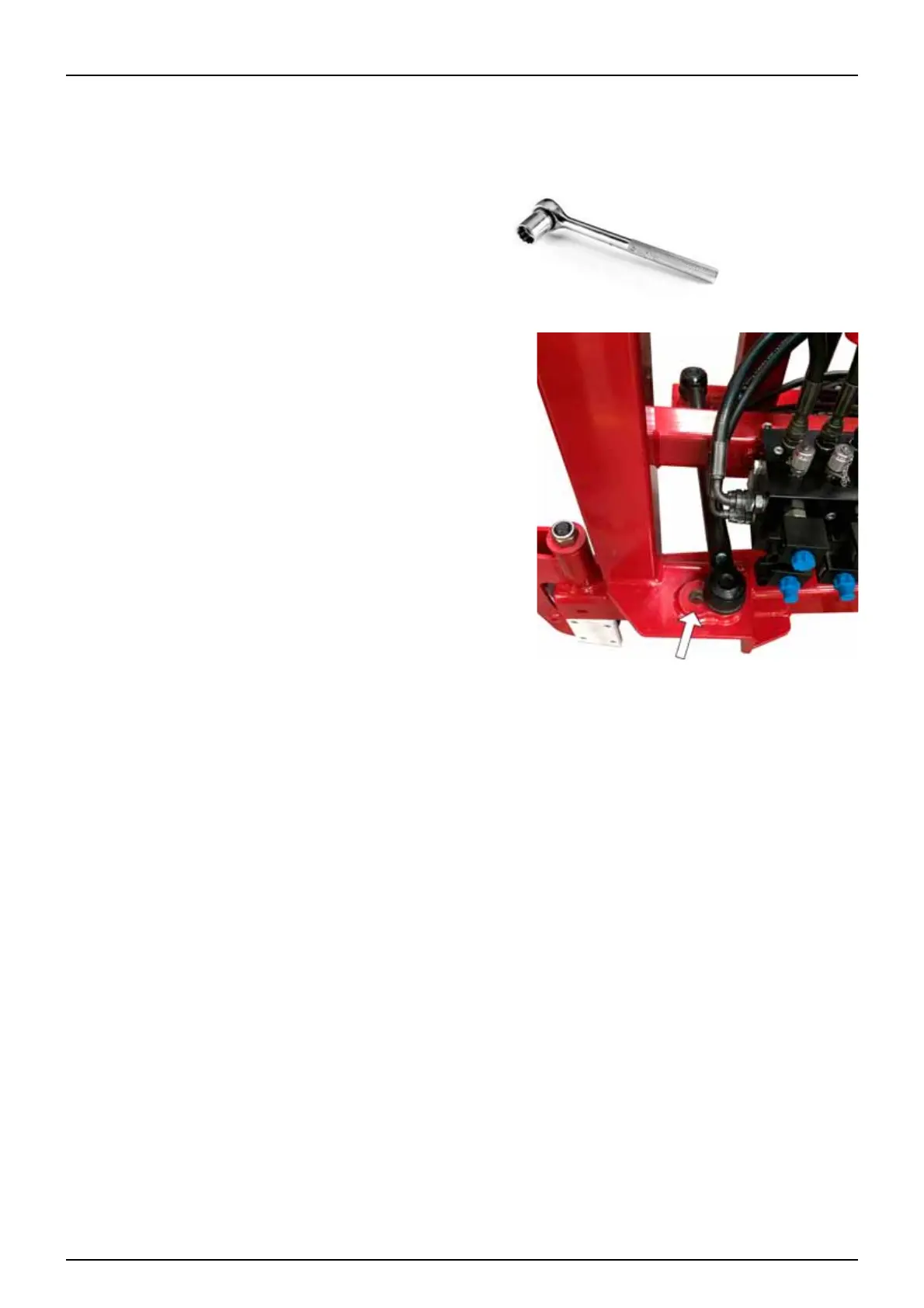

1. Loosen the nuts below both rod connections next to the free hole
(see arrow).
2. Move the rods to the free hole position.
3. Mount the nuts with a torque of 250 Nm.
÷
These guide rods angle outwards, which is opposite to the guide
rods at the top.
Moving the Guide Rods at the Top Tools Needed
1. Loosen the nuts below both rod connections next to the free
hole (see arrows).
Torque wrench, size 27 mm
2. Move the rods to the free hole position.
3. Mount the nuts with a torque of 250 Nm.
