16. Replace the clear shield on the terminal strip.
17. Install access cover "C".
18. Install air filter "F".
- WARNING -
Spilling fluid on the floor can create a slipping hazard. Spilled fluid must be
cleaned up immediately.
- NOTE -
The spindle chiller has an oil capacity of approximately ten gallons [40 liters].
19. Remove cap "I", Figure 1.38, and fill the chiller unit reservoir with Mobil Velocite
®
Oil No. 3.
Verify the oil level with sight gauge "J".
20. Replace the cap when filling is complete.
21. Replace access covers "A", Figure 1.31, and "B", Figure 1.32.
M-507C 1-23

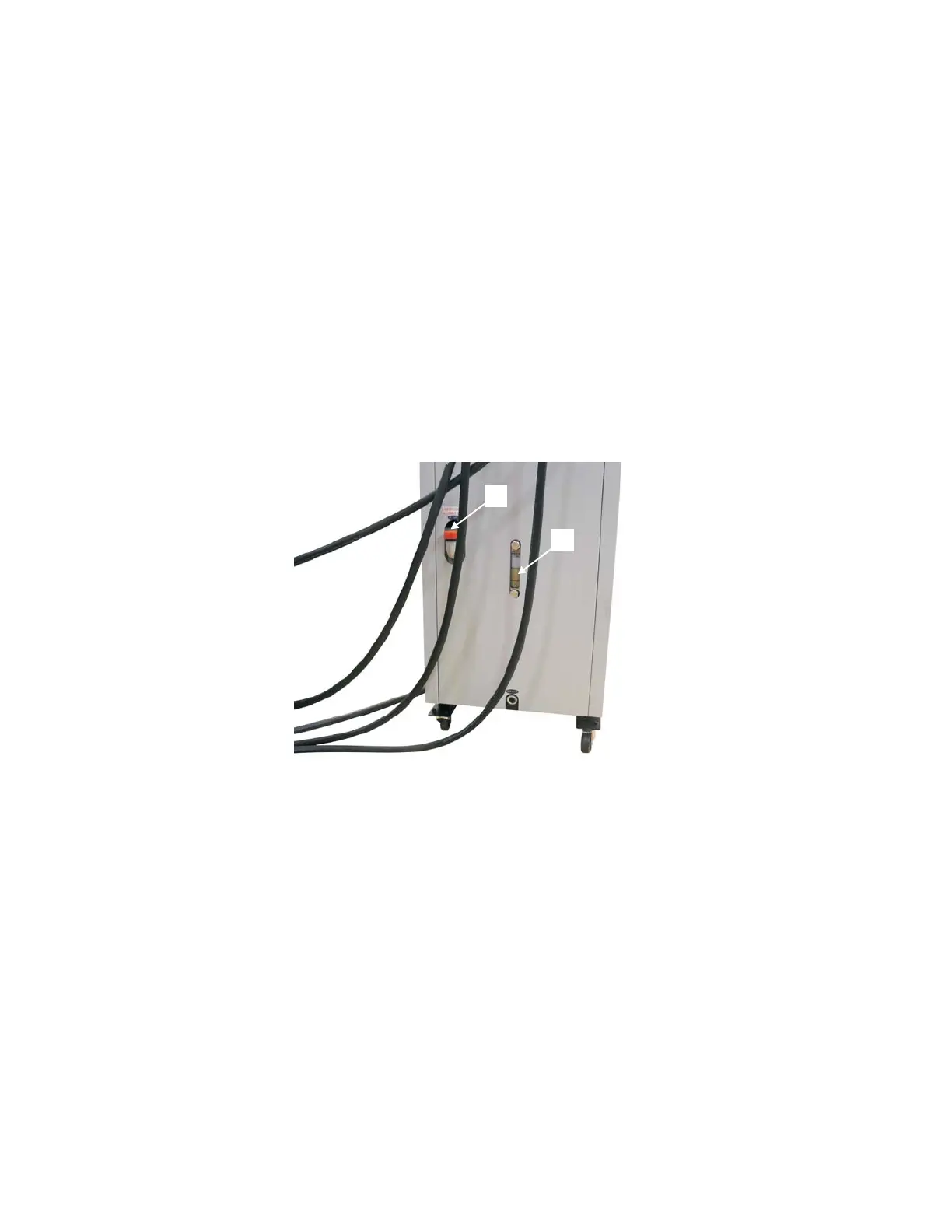

Figure 1.38 - Filler Cap and Drain
Plug on Back of Chiller Unit
TP7875A
I
J
