T-51 AND T-65 LATHES
A) Remove four screws and chip chute "M", Figure 1.42, from the coolant tank.
B) Support the left end of the chip conveyor.
C) Roll the chip conveyor into the coolant tank. Refer to Figure 1.43.
D) Secure the chip conveyor with the four screws previously removed.
E) Set bar feed selector switch "L", Figure 1.41, to MAN FWD (Manual Forward).
M-507C 1-25

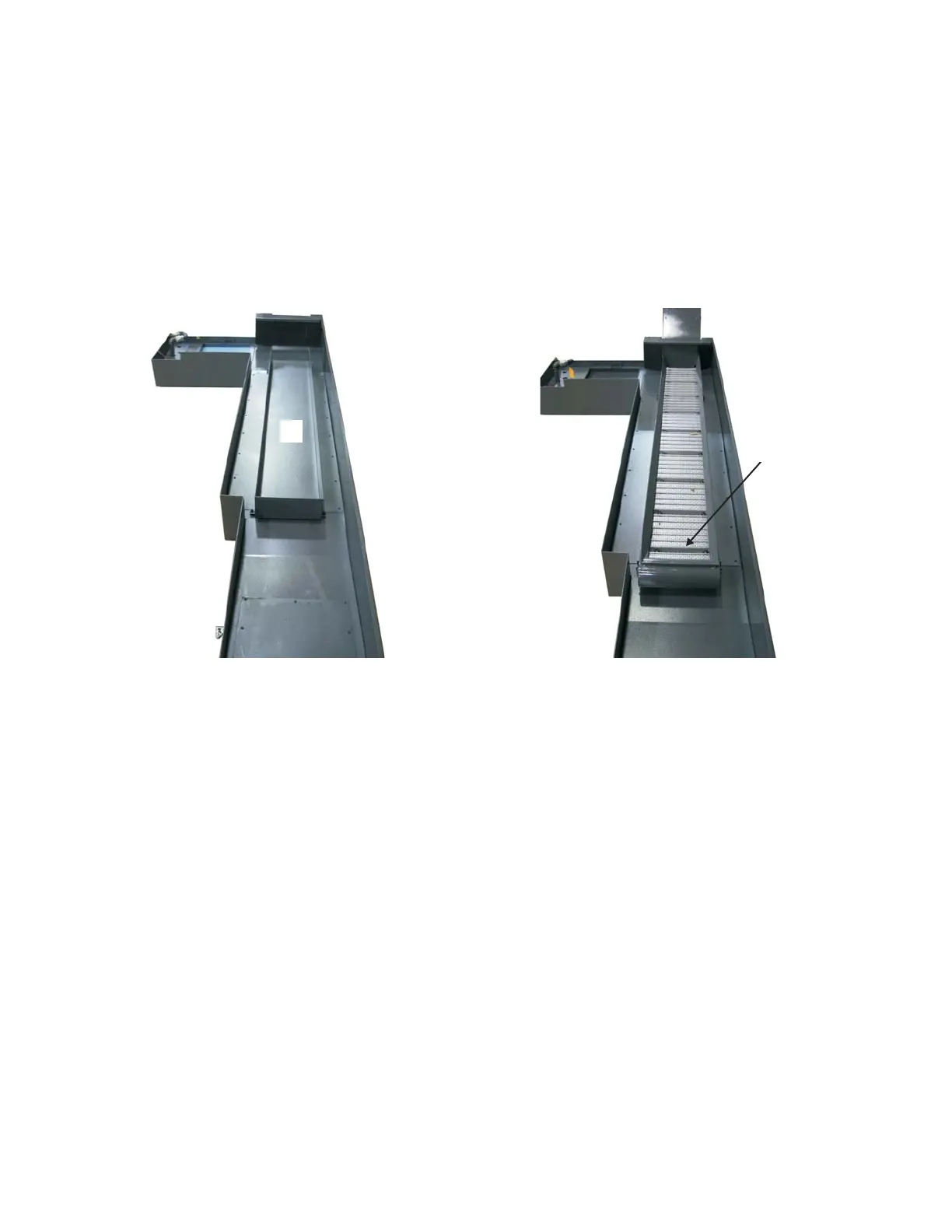

Figure 1.42 - Coolant Tank
(T-51 and T-65 Lathes)
M
TP8310
Figure 1.43 - Chip Conveyor Installed
(T-51 and T-65 Lathes)
Support this end of
the chip conveyor
during installation.
TP8311
