Hardinge T-42 - Page 34

2. Roll the tank into place under the front of the machine.
3. Remove access cover "O", Figure 1.31.
4. Engage right coolant tank clamp "N", Figure 1.44.
5. Engage left coolant tank clamp "O", Figure 1.45.
6. Mount left end skirt "P" on the machine and engage two latches "Q", Figure 1.46.
1-26 M-507C

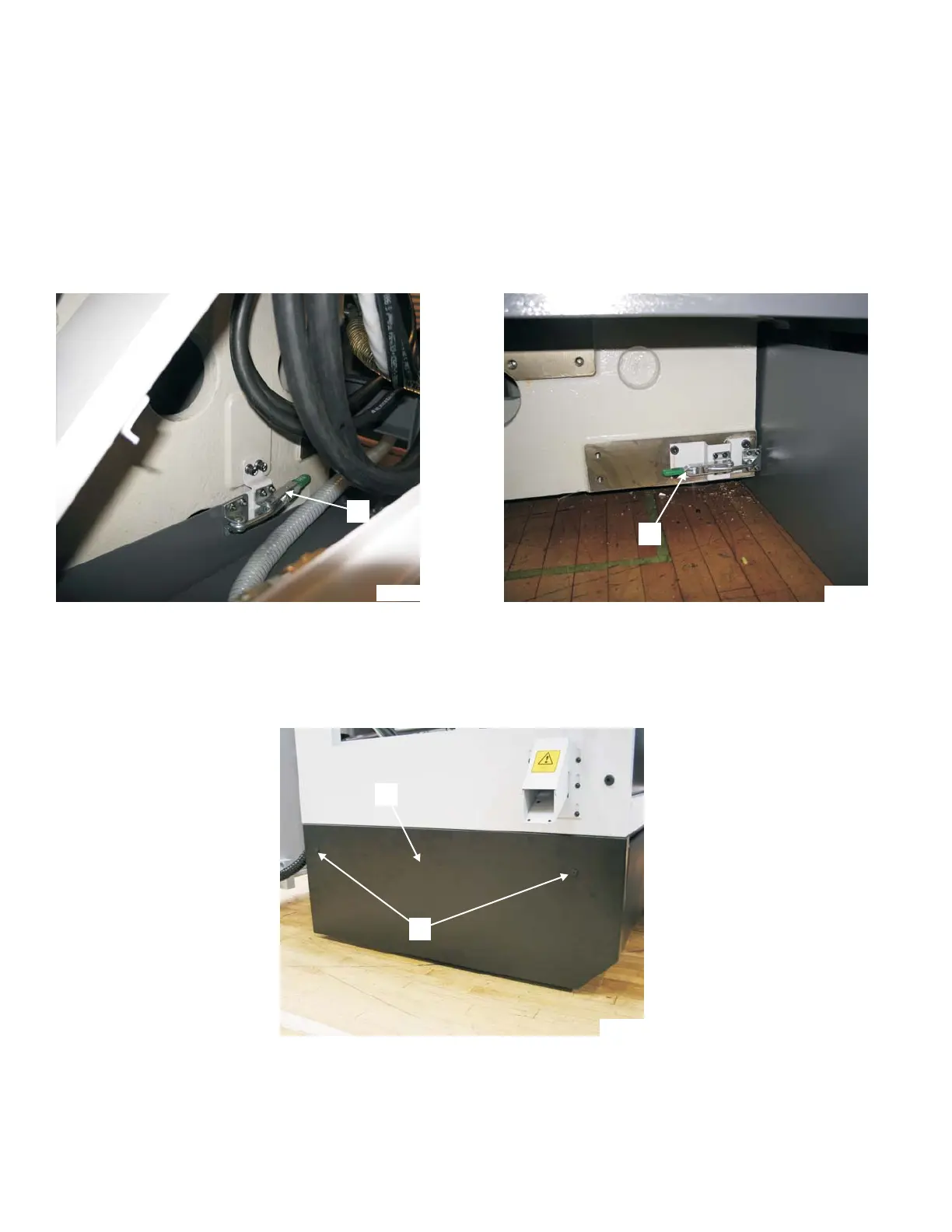

Figure 1.44 - Coolant Tank Clamp Engaged
(Right End of Tank)
TP7942
N
Figure 1.45 - Coolant Tank Clamp Engaged
(Left End of Tank)
TP7870A
O
Figure 1.46 - Left End Skirt
Mounted on Machine
Q
P
TP7871
