7. Release two latches "V" and remove left end skirt "W", Figure 2.19, from the machine.
8. Release coolant tank clamp "X", Figure 2.20.
9. Move the tank from under the machine.
10. If cleaning a coolant tank equipped with a chip conveyor:
A) Remove four screws "A", Figure 2.21.
B) Support the left end of the chip conveyor.
C) Roll the chip conveyor out of the coolant tank.
-or-
If cleaning a coolant tank without a chip conveyor on a T-51 or T-65 lathe:
A) Remove four screws “B”, Figure 2.22.
B) Remove tank liner “C”.
11. Rake or shovel the chips into a suitable container and dispose of them properly.
12. Remove the chip basket, Figure 2.21, 2.22, or 2.24.
13. Remove the coolant tank covers, Figure 2.23 or 2.24.
14. Pump the coolant from the tank.
2-14 M-507C

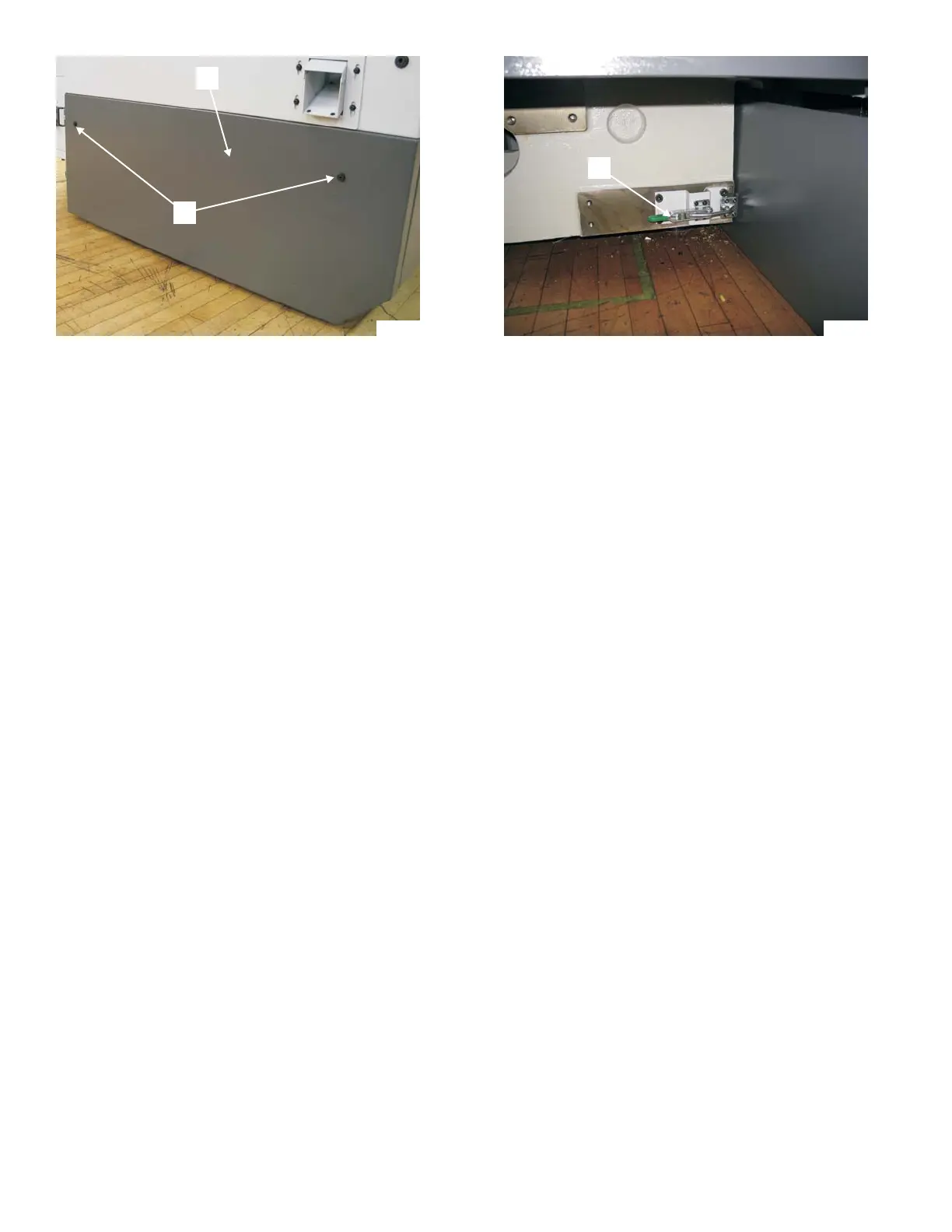

Figure 2.19 - Left End Skirt
Mounted on Machine
W
V
TP7871A
Figure 2.20 - Left Coolant Tank Clamp
X
TP7870A
