Hardinge T-42 - Page 80

6. Attach the upper end of platform bracket "W", Figure 2.42.
7. Attach and tighten the lower end of platform bracket "W".
8. Attach the upper end of platform bracket "X", Figure 2.43.
9. Attach and tighten the lower end of platform bracket "X".
10. Close and latch the access doors.
2-30 M-507C

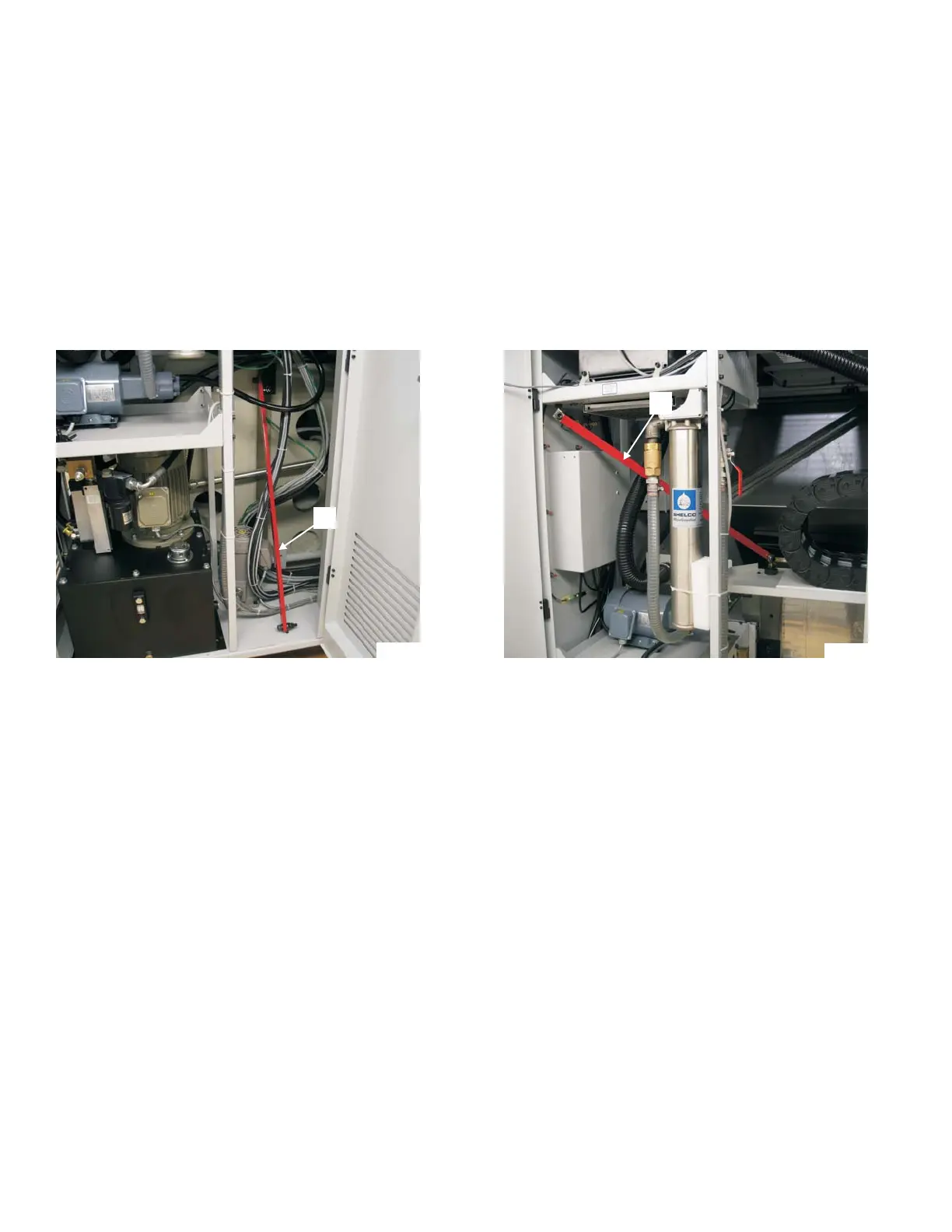

Figure 2.42 - Lower Power Case
Platform Shipping Bracket
W
TP7953
Figure 2.43 - Upper Power Case
Platform Shipping Bracket
(T-51 and T-65 Lathes)
X
TP8328
