11. On T-51 and T-65 lathes, use the four M12 x 1.75 x 20 socket head cap screws and high collar
lock washers retained during machine installation to install the guard support brackets as
shown in Figure 2.44.
M-507C 2-31

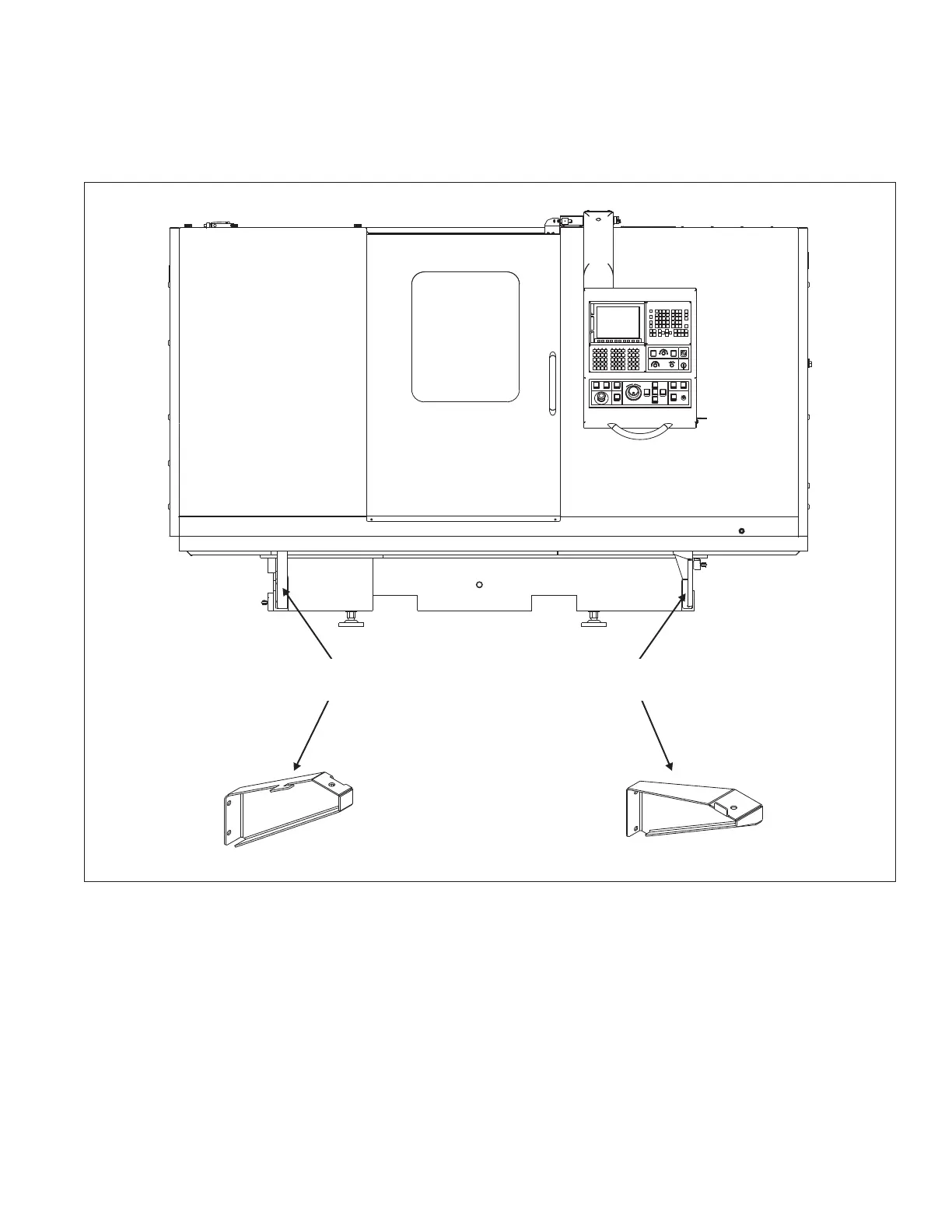

Figure 2.44 - Guard Support Brackets
(T-51 and T-65 Lathes)
TI5852
Isometric View
of Brackets
Left Guard
Support Bracket
Right Guard
Support Bracket
