HI 6600 Series Modular Sensor System User Guide
Page | 21
Installation

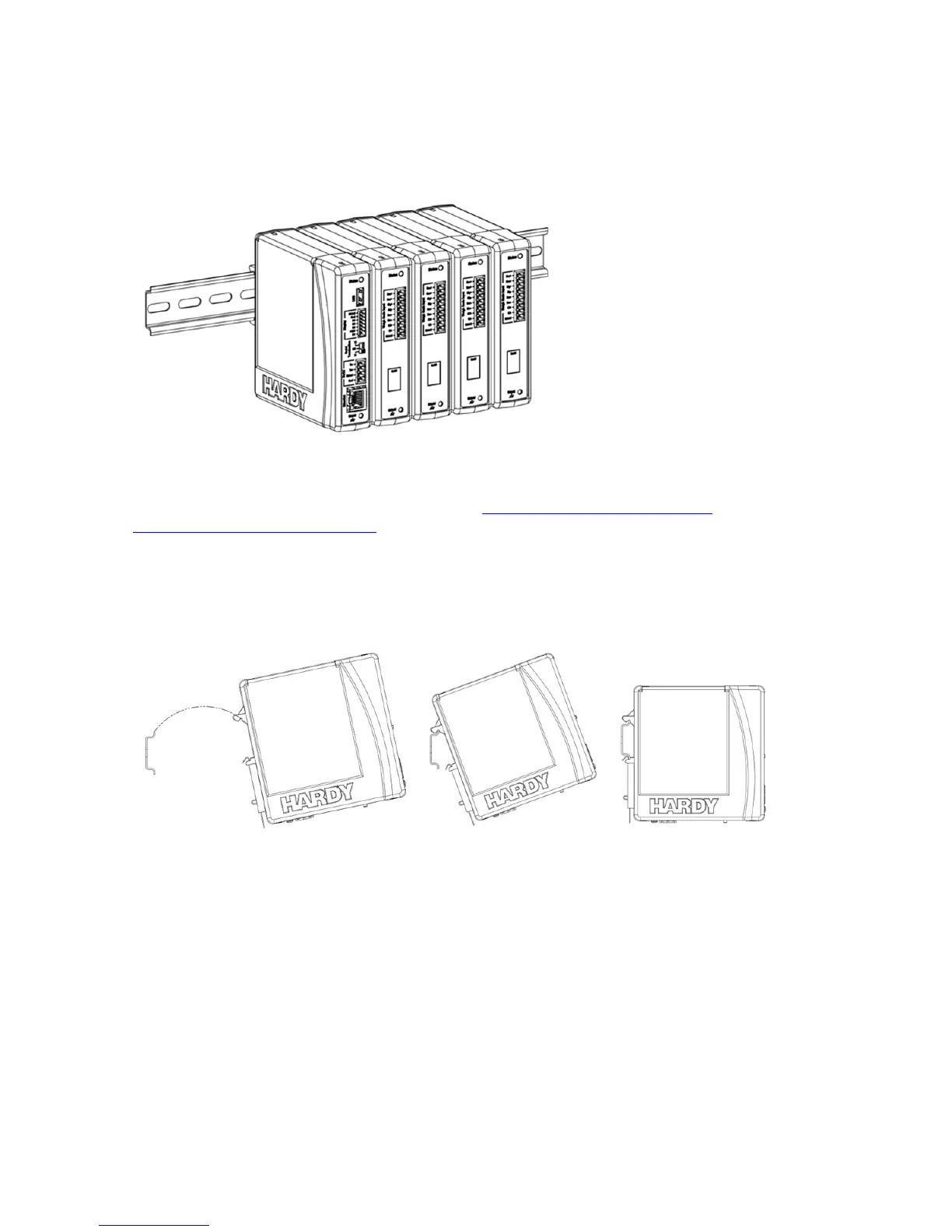

The HI 6600 Series WPMs and HGMs are designed to be installed on a DIN rail as shown below.
The MAXIMUM span between the first and last module that comprise a system is 500 feet (150
meters). See Chapter 2 for specific recommendations on Power Requirements for Configuring
Modular Sensor Systems Over Distance.
Note: Use DIN rail conforming to EN 60715 and EN 50022.
Begin by installing the WPMs or HGMs onto the DIN rail as shown below.
1) Hook DIN rail bracket onto the DIN rail using the groove at the top of the bracket
2) Rotate the instrument down until the spring-clip comes in contact with the DIN rail, then press
firmly on the bottom on the instrument until it snaps in place.
3) While holding the front of HI 6600 series module, gently pull away from the DIN rail to verify
that it is mounted correctly.
