Hardy Process Solutions HI 6600-EIP - Mounting the Optional Front Panel Display

HI 6600 Series Modular Sensor System User Guide
Page | 26
The optional display for the HI 6600 series instrument can be mounted in a remote location up to 250 feet
(75 meters) from the Hardy Gateway Module by modifying the supplied cable.

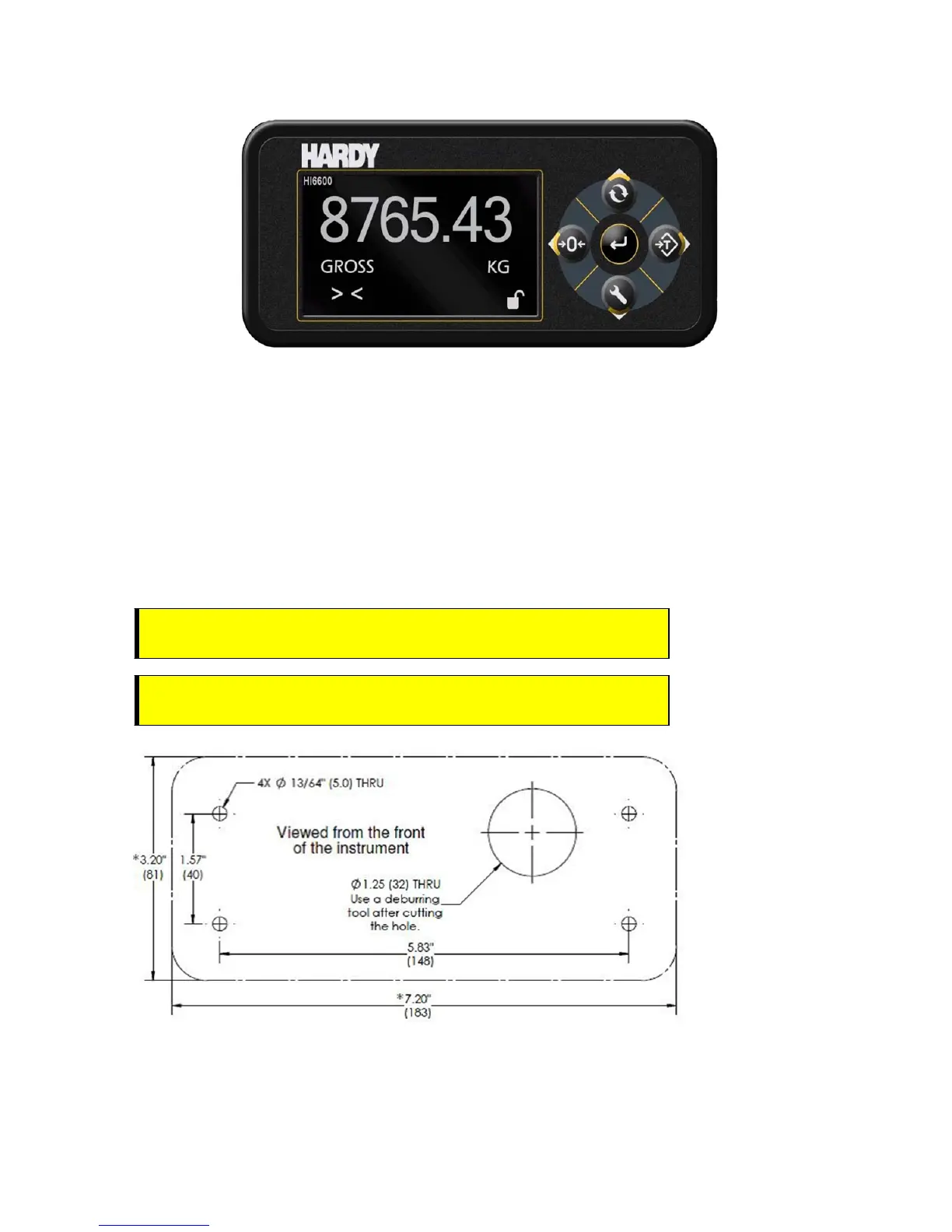

Mounting the Optional Front Panel Display
(1) Make sure that all Electrostatic Discharge (ESD) precautions are taken before and during installation.
(2) A thin plastic template comes with the product. Make the hole pattern in the panel door or cover using
the dimensions provided on the diagrams below.
Panel Hole Dimensions (not displayed to scale)
AVERTISSEMENT – Nous vous recommandons d'installer le HI 6600 dans
un boîtier NEMA 4, 4X ou IP 55 ou mieux.
WARNING - We recommend installing the HI 6600 series modules in a
NEMA 4, 4X or IP 55 rated enclosure or better.
