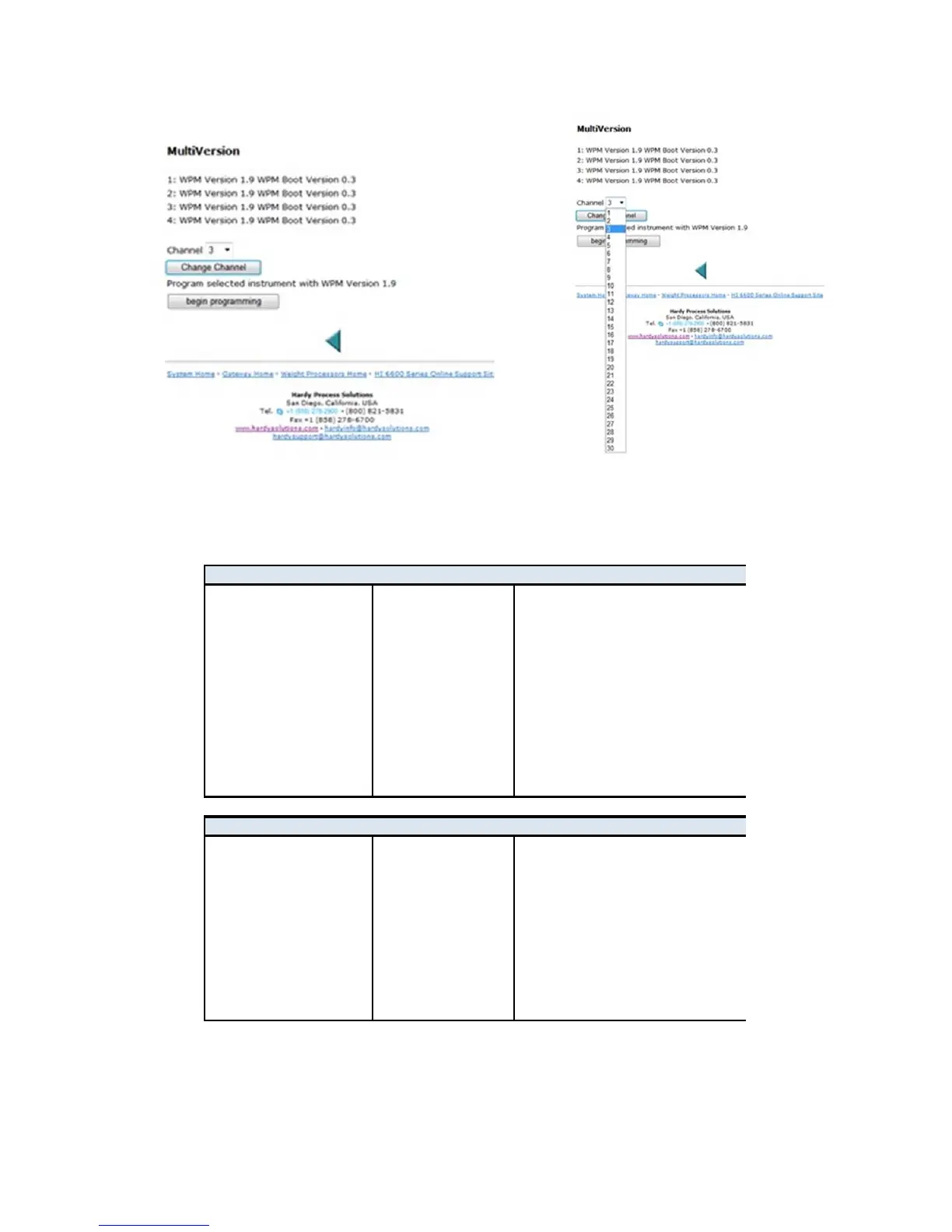

To change to a different WPM Channel, just select it from the pull down menu.
To update firmware on a WPM version, first select it and change the channel, then select
Begin Programming.
Indicator Lights Summary
Weight Processing Module
Green LED
1 off
2 off
3 off
4 off
5 solid
6 slow blinking
7 fast blinking
8 slow blinking
9 fast blinking
Red LED
off
solid
slow blinking
fast blinking
off
off
off
slow blinking
fast blinking
Definition
No Power, or ARM not programmed
HardyNet network failure
Built-in self-test failure
Low Power indication
Normal operation
Unit identification
Unit being programmed
Load cell current issue
Measurement errors
Hardy Gateway Module
Green LED
1 off
2 off
3 off
4 off
5 solid
6 slow blinking
7 fast blinking
8 slow blinking
9 fast blinking
Red LED
off
Solid
Slow bllinking
fast blinking
off
off
slow blinking
fast blinking
fast blinking
Definition
No Power, or ARM not programmed
HardyNet network failures
Built-in self-test failure
Low Power indication
Normal operation
Unit identification
Unit being programmed
Network error (no comms)
DSP error
