Making Longer Display Interface Cables

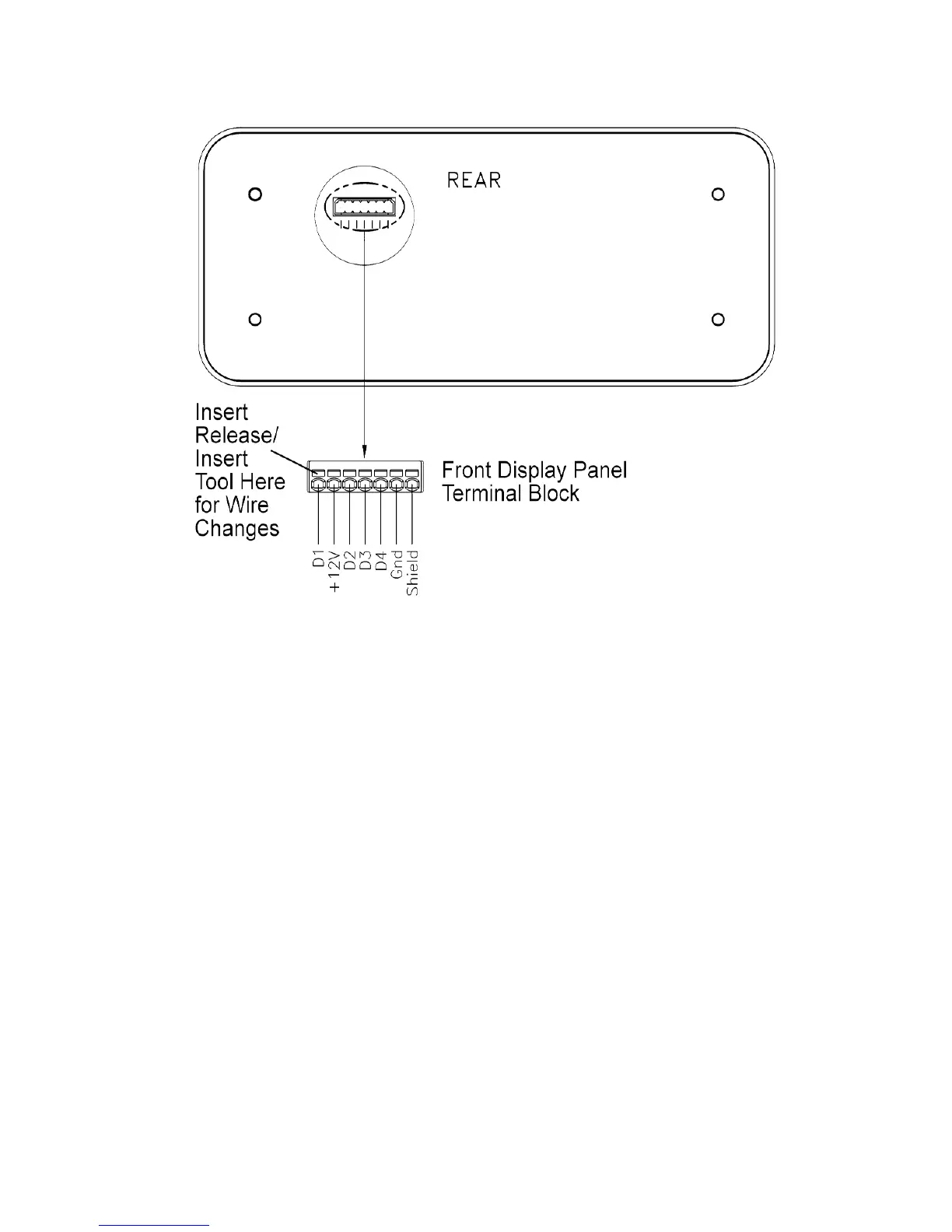

The terminal block uses a spring cage type contact. There is a slot provided to use an insert/release tool. The
tool is a 2.0 mm x 0.4 mm wide flat blade screw driver. Inserting the end of the small screwdriver tool opens
the cage contact and allows one wire to be inserted. Removing the insertion tool with bare conductor wire
inserted will lock the connection.
Wiring Specifications
Wire size: 20 AVG maximum / 26 AVG minimum
Maximum cable length: 100 ft. (30.48 meters)
Use three twisted pairs with a drain wires
Pair wires +12 and GND, D1 and D2, D3, and D4
