HI 6600 Series Modular Sensor System User Guide
Page | 73
7) Click the Download Icon to download the configuration to the PLC and open the
Select Destination
Module dialog box.
8) Click OK to open the Select Station Address Dialog box; then click OK again. A status box will
show the progress of configuration download to the PLC.

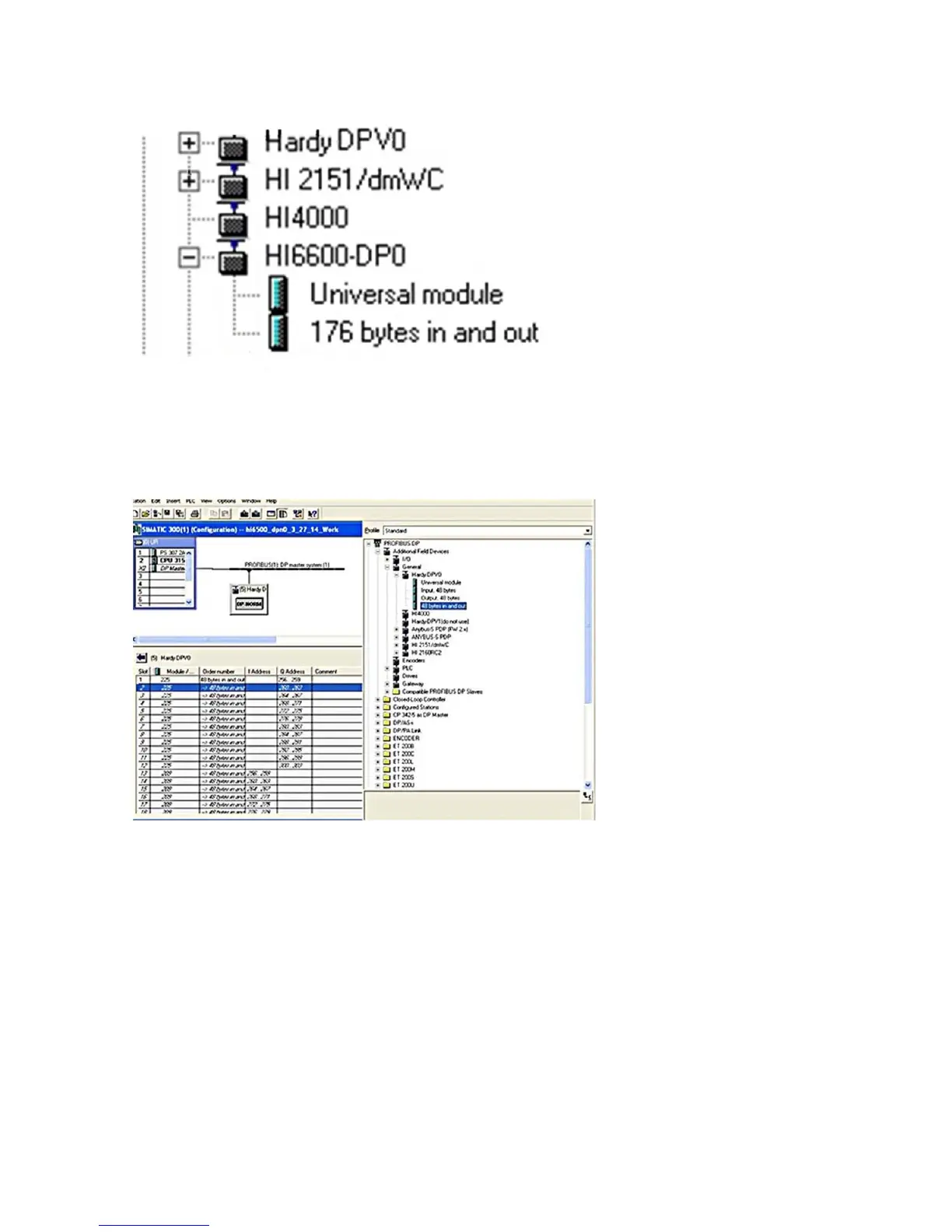

When the download is complete the HW Config dialog box should look something like this.
9) Initialization is Complete
