PREPARATION
VPL400-X: SECTION 3
UNLOADING
• The 4' VPL is shipped standing up shrink
wrapped to a pallet. The pallet dimensions
are 48" x 48" x 83". Units are screwed into
" wrench
socket to remove screws. See Figure 3-1.

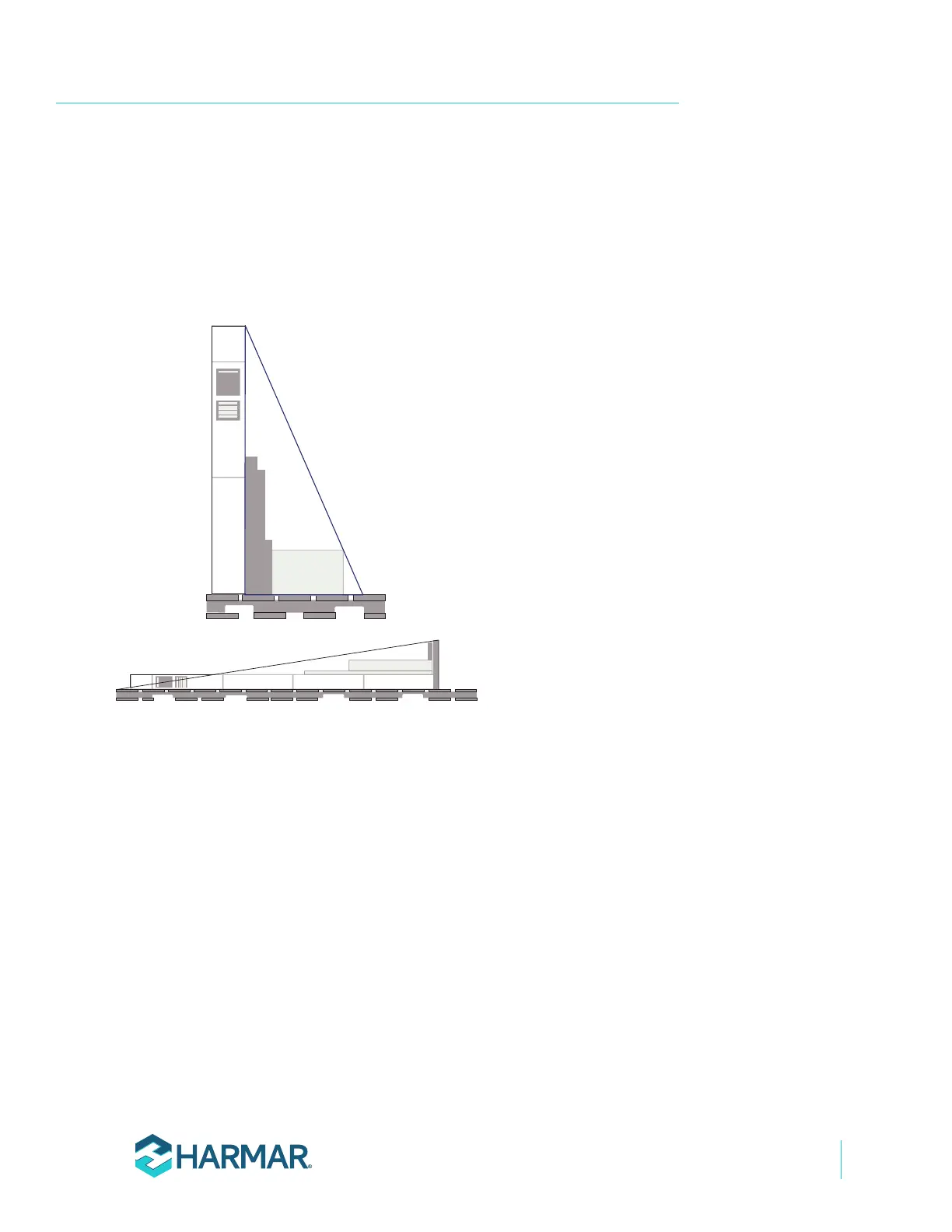

Figure 3-1
• A lift gate is unable to be used when the tower
is shipped laying down. A pallet jack or forklift
can be used to set into place.
Note: Must have a loading dock, pick up the VPL at the
shipping terminal, or ship it directly to the installation site.
This information must be documented on the evaluation
form.
• VPL’s weigh between 800 - 900 lb, depending
on the height. The following may be necessary
to assist in positioning:
• Additional Manpower
• Fork Lift
• Crane
• Pallet Jack
• Lever Bar Dolly
BOX CONTENT
Inspect all of the boxes for damage or missing parts.
If you see any damage, contact the freight carrier to
file a damage claim and contact Harmar.
Verify the products match those described on the
packing list attached to the exterior packaging. If
items are missing or are incorrect, contact Harmar.
UNPACKING
1. Unwrap the VPL and set the following items
aside:
• Small Parts Box
• Ramp (if provided)
• Platform Panels
• Platform
• Gates
2. Remove the tower from the pallet.
3. Perform pre-delivery inspection
To Next Page
