QUICK START WIRING
VPL400-X: SECTION 6

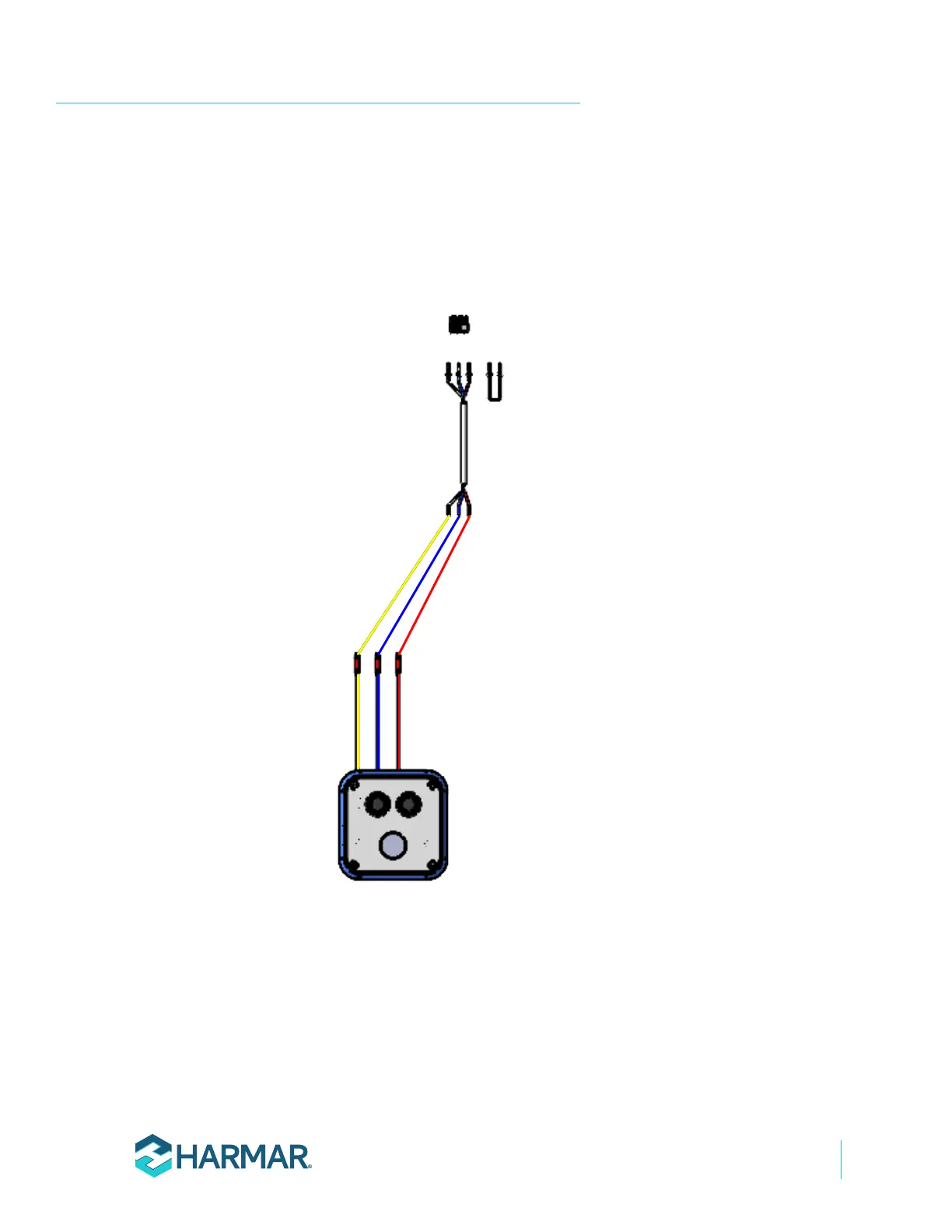

LOWER LANDING WIRE CONNECTIONS
Figure 6-3
150-00155- CABLE- LOWER LANDING
150-00144- CABLE- UPPER LANDING
150-0097- HARNESS- PLATFORM GATE
130-00640-XXX CALL/SEND 130-00682-XXX CALL/SEND
130-00817- INTERLOCK WITH PIGTAIL
46221/46222- INTERLOCK WITH 150-00117- PIGTAIL
46221/46222- INTERLOCK WITH 150-00117- PIGTAIL 130-00817- INTERLOCK WITH PIGTAIL
130-00682-XXX CALL/SEND 130-00640-XXX CALL/SEND
NOTE: The yellow and blue wires may be white and green on older units.
