Harmar Mobility VPL400-X - Platform Gate Wire Connections

VPL400-X: Install Manual
21JULY2023 | 630-00159 B
30
QUICK START WIRING
VPL400-X: SECTION 6

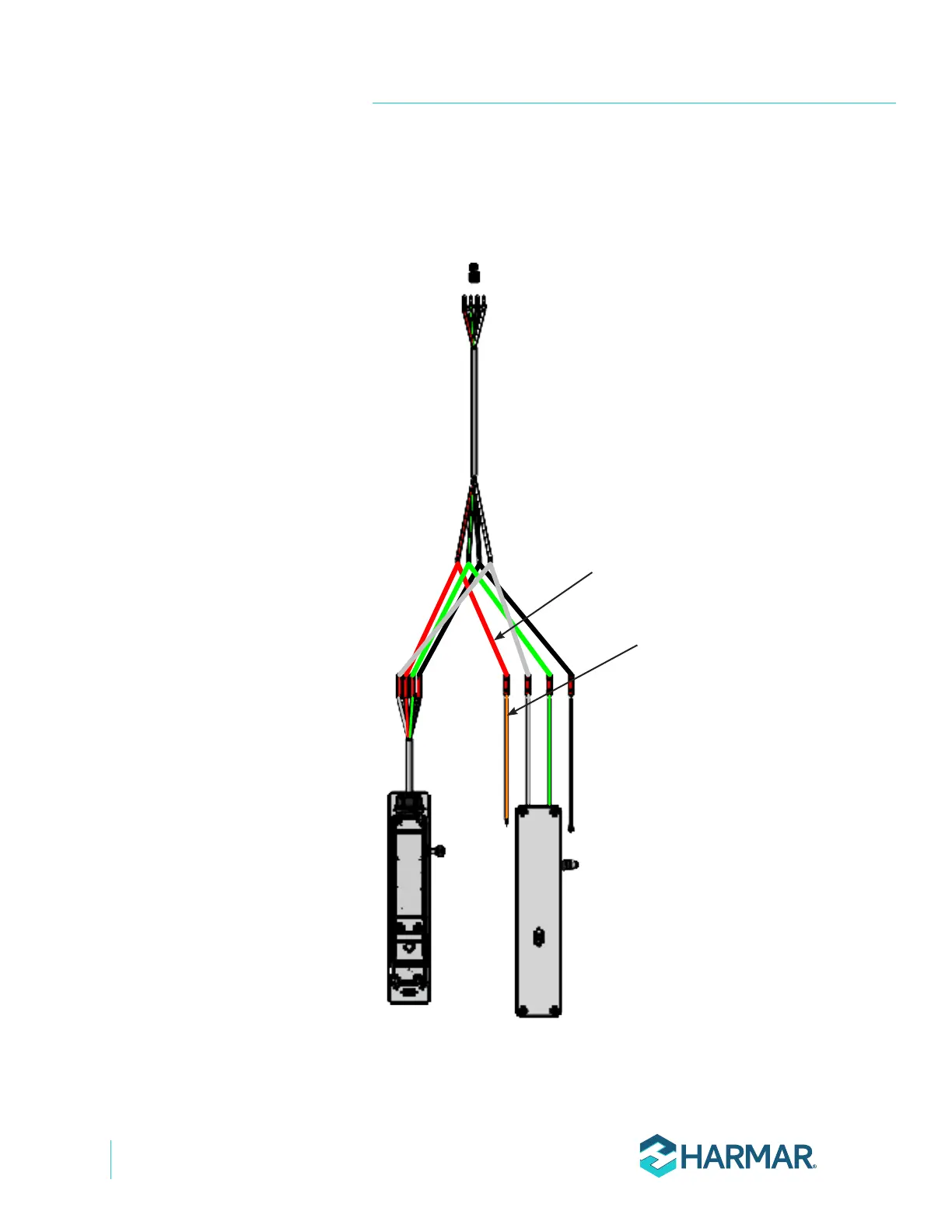

Figure 6-2
PLATFORM GATE WIRE CONNECTIONS
150-00155- CABLE- LOWER LANDING 150-00144- CABLE- UPPER LANDING
150-0097- HARNESS- PLATFORM GATE
130-00640-XXX CALL/SEND 130-00682-XXX CALL/SEND
130-00817- INTERLOCK WITH PIGTAIL
46221/46222- INTERLOCK WITH 150-00117- PIGTAIL
46221/46222- INTERLOCK WITH 150-00117- PIGTAIL 130-00817- INTERLOCK WITH PIGTAIL
130-00682-XXX CALL/SEND 130-00640-XXX CALL/SEND
Orange Wire
Red Wire
NOTE: On a Honeywell interlock the wires go from red to orange.
