INTRODUCTION
VPL400-X: SECTION 2
KEY VERTICAL PLATFORM

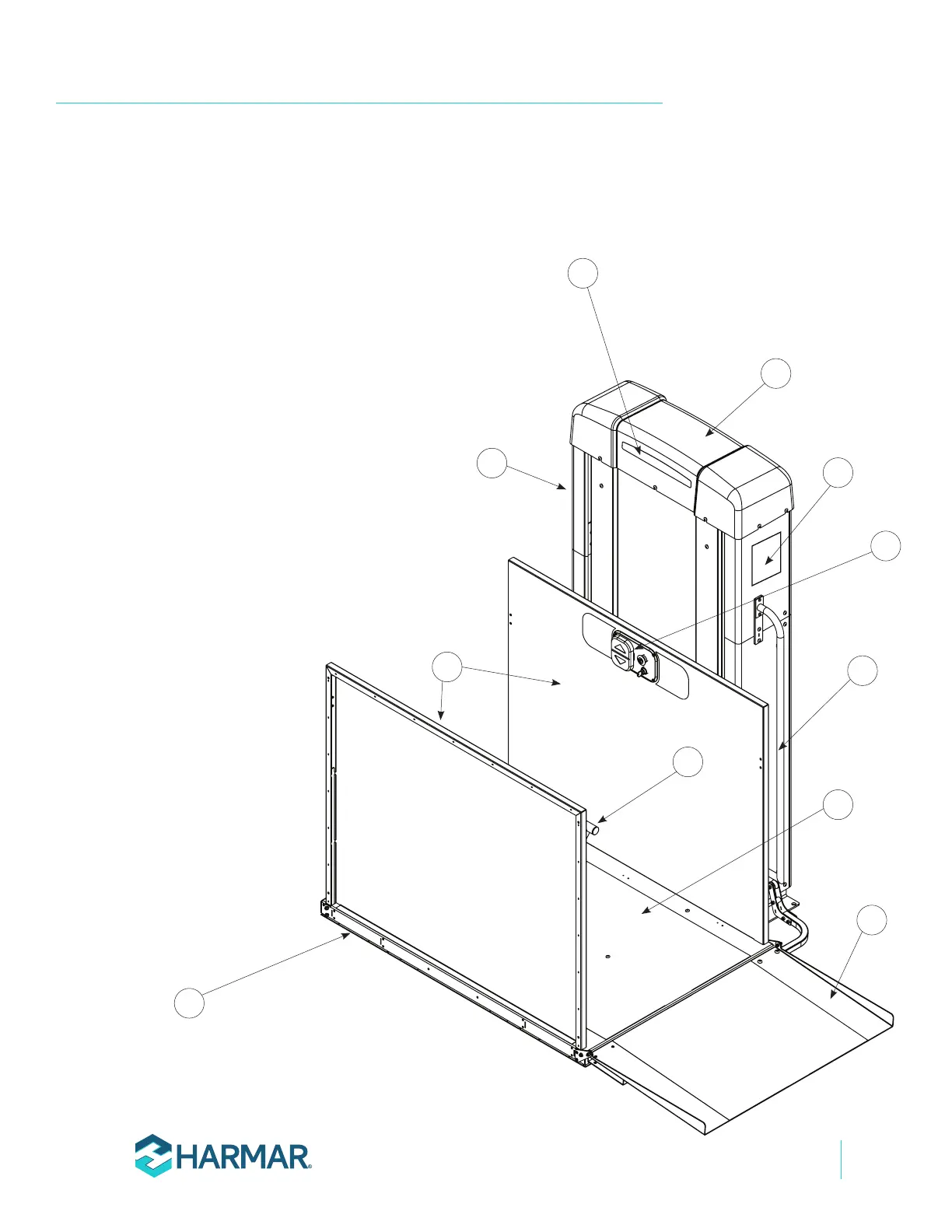

LIFT ELEMENTS
1. Top Cap
2. Decal
3. Data Serial Tag
4. Platform
5. Platform Guard Panel
6. Grab Rail (if supplied)
7. Platform Controls
8. Platform Safety Pan
9. Platform Folding Ramp/
Platform Fixed Ramp
10. Tower
11. Folding Ramp Actuator Tube
1
2
10
11
3
7
5
6
8
4
9
