VPL400-X: Install Manual
21JULY2023 | 630-00159 B
18
INSTALLATION
VPL400-X: SECTION 4
INSTALLING THE
AUTO-FOLDING RAMP

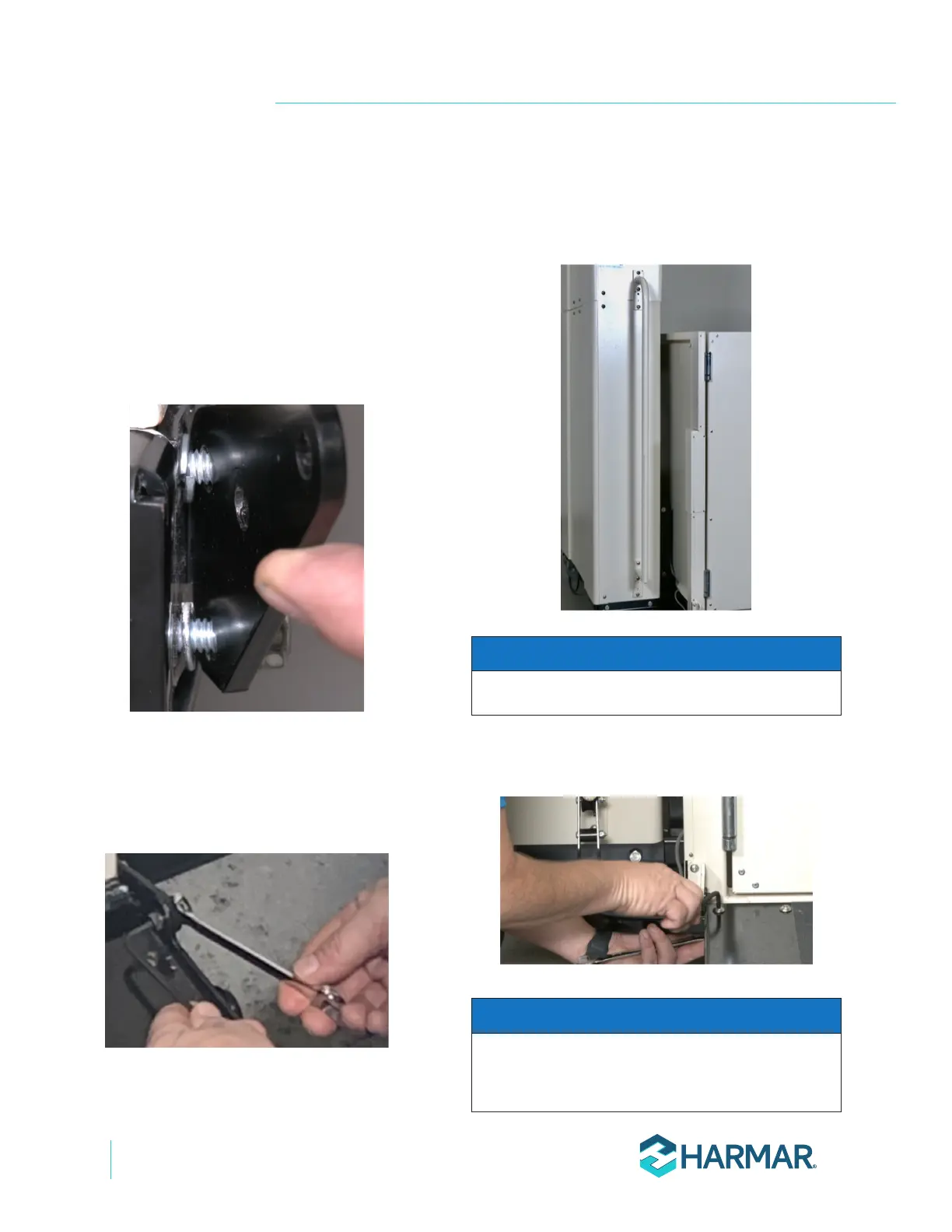

1. If an auto fold ramp option is being installed,
the ramp brackets must be installed with
the hardware and washers included with the
ramp pivot tab brackets. Attach the two ramp
pivot tabs to the lower landing sides of the
washers that go between the pivot bracket
and platform. See Figure 4-24.
Figure 4-24
2. Attached the ramp to the pivot bracket with
the supplied shoulder bolts and nyloc nuts
"" boxed end
wrench to tighten the fasteners.
See Figure 4-25.
Figure 4-25
3. Remove the three (3) screws holding the tower skins
to the tower and install the ramp actuator tube in
that was previously removed. See Figure 4-26.
Figure 4-26
The curved corner of the ramp roller guide is oriented up.
NOTICE
4. Adjust actuator ramp arm, so that it is lined up
with the actuator tube. Tighten the two Allen bolts
from the ramp to the ramp arm. See Figure 4-27.
Figure 4-27
If you have a platform gate and auto-folding ramp,
the ramp brackets are different. The angle brackets
are attached to the gate frame.
NOTICE
