Chapter 1 ProStream 9100 Overview
© 2016 Harmonic Inc. All rights reserved. 22 ProStream 9100 Release 17.5, Rev A
Back Panel
Environmental and Physical
Compliant with ROHS Directive 2002/95/EC. See Environmental and Physical.

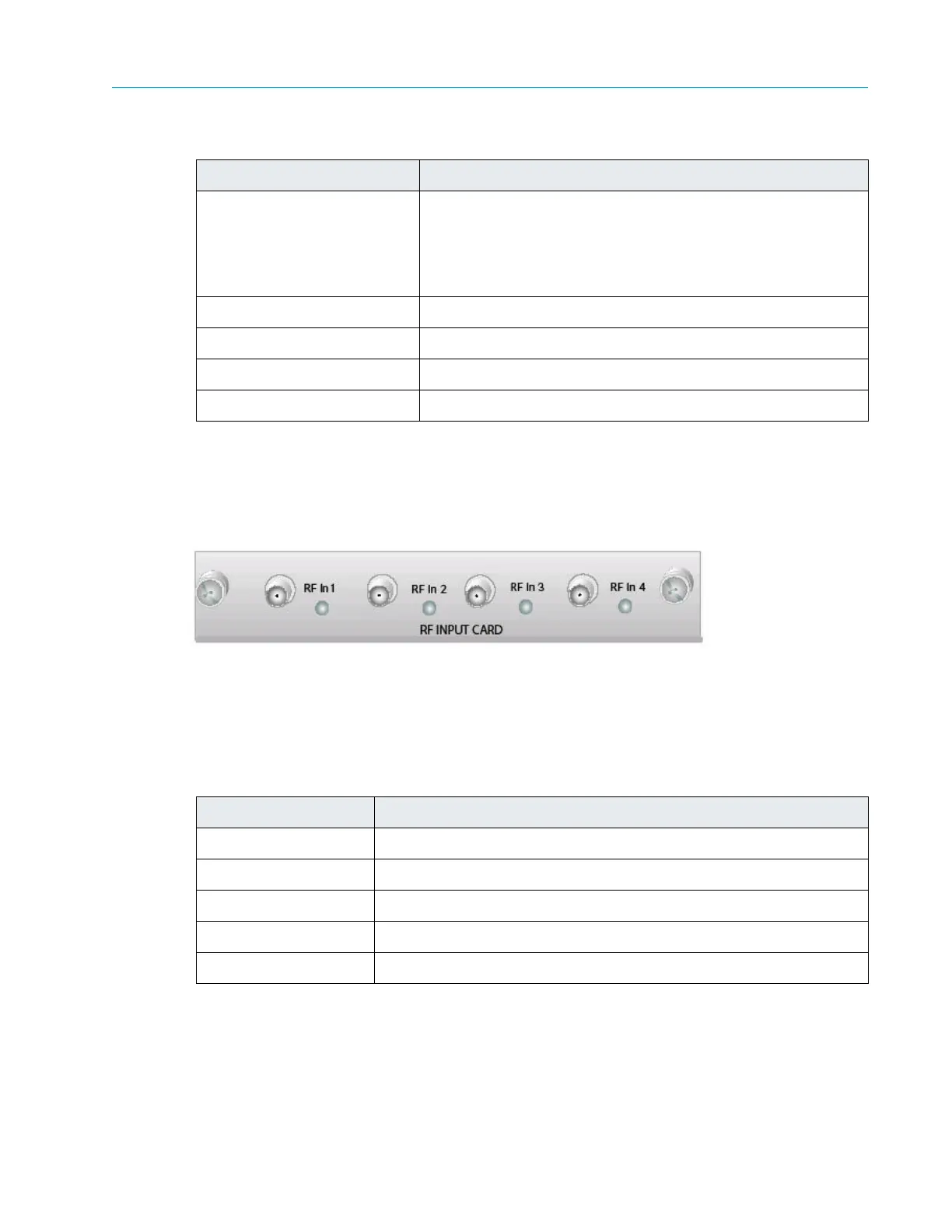

Figure 1–6 displays the module (rear panel).
Figure 1–3: RF Input Module
RF Module LED Lights
The LED lights status, as described in Table 1–15.
Tuning Range VHF/UHF (Channels 2–59)
Note: The tuning range is limited to Channels 2 to 59 by
software (and SCTE 02-2006), per the FCC/Industry Canada
decisions to release channels 60 to 69 for public safety use
Sensitivity –83dBm/6 MHz
Dynamic Range > 80dB
MPEG Format 188 Bytes per TS packet
MPEG-2 TS MPTS and SPTS
Table 1–18: LED Status Lights
LEDs Description
Off Port disabled
Blinking Yellow Loss of sync
Red Packet error rate (PER) threshold exceeded
Steady yellow SNR below threshold
Green Port Enabled, no alarms
Table 1–17: RF Module Specifications
Feature Support
