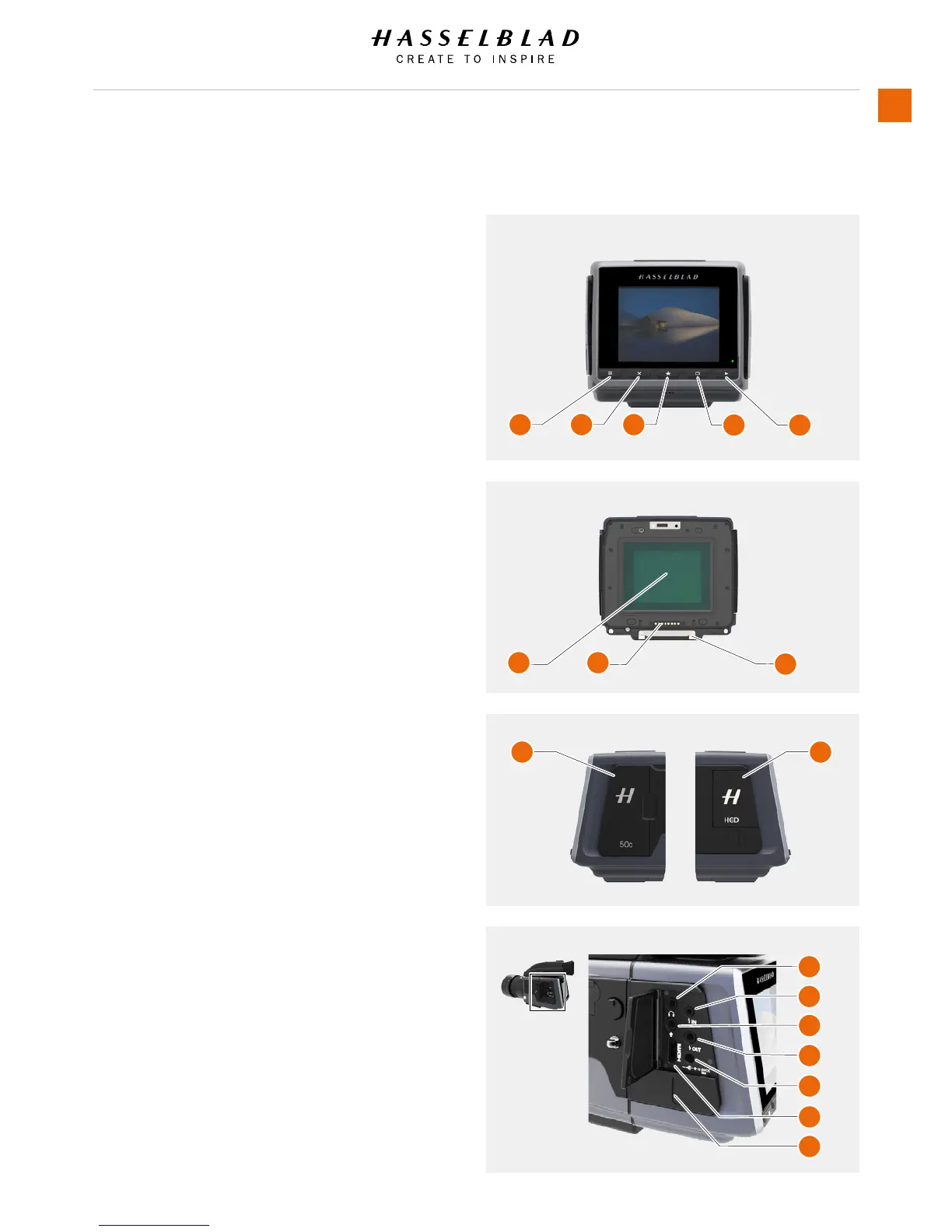

3.6 SENSOR UNIT
1 MENU / (EXIT) button
This button opens and closes the menu system. It is also
used for other tasks (for example EXIT button) as you issue
commands navigating the menu system.
2 Soft button
This button is “delete image” in browse mode. Can also be
soft button depending on screen information.
3 Image rating button
Rate image 1-5 stars or green/yellow/red. Also works as
soft button. (Only available in a later Firmware release).
4 Soft button
Function depends on screen information.
5 Browse button
Starts display and shows the last image. The user can
review images, browse and zoom. Preview images and zoom
in to view close-ups of previews for focus checking. Zoom
out to view several at once and nally to view and select
folders and media.
6 CMOS and IR lter
The sensor is positioned behind a permanently mounted
IR lter. Always be very careful not to touch or scratch
the surface of the lter when it is exposed. Replace the
protective cover whenever the sensor unit is not mounted on
a camera.
7 Data bus connectors
Connectors for digital communication with the camera body.
8 Retaining bar
Main support for the sensor unit.
9 Storage media cover
CFast or SD cards.
10 Connections cover
Cover for External Connections.
11 Audio Out
Connector for external 3.5 mm Stereo Audio Out Plug.
12 Flash sync input
Connector for 2.5 mm Flash Sync input plug.
13 Audio in
Connector for Audio In Microphone 3.5 mm stereo plug.
14 Flash sync output
Connector for 3.5 mm Flash Sync output plug.
15 External power in
Connector for External Power in plug.
16 HDMI
Connector for Mini HDMI plug.
17 USB 3 Tethering plug
Connector behind protective door for USB 3 plug.
1 2 3
4 5
6 7
8
9 10
11
12
13
14
15
16
17
