TECHNICAL DETAILS
1-7MS 3000 • 9095-032A
1.5 Anchor forces
Torque scaffold coupling: 50 Nm.

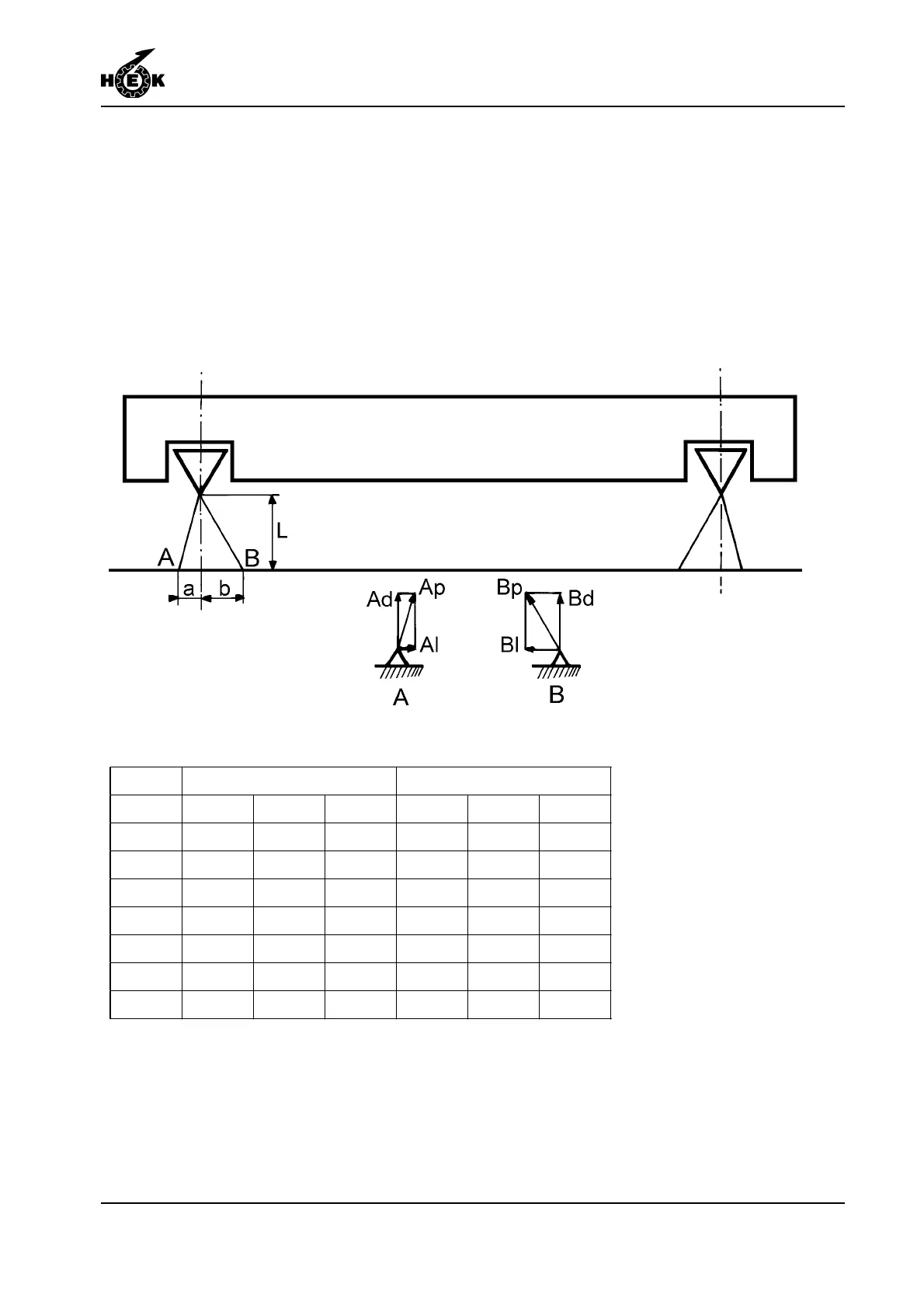

The anchor forces can be ascertained by referring to the following illustration and table.
Conditions:
a + b must be greater than or equal to L
a must be greater than or equal to 0
b must be greater than or equal to 0
The forces Al and Bl are calculated forces parallel to the facade.
The forces Ad and Bd are calculated forces perpendicular to the facade (these forces
may either be in tension or compression).
The forces Ap and Bp are the calculated forces in the anchor tubes.
Existing anchor forces
L = 0.61 m L = 0.91 m
a (m) 0.25 0.51 0.51 0.25 0.51 0.51
b (m) 0.51 0.25 0.51 0.51 0.51 0.76
Ad (N) 5590 3780 4180 6620 4960 5020
Bd (N) 3870 5580 4180 5070 4960 3970
Al (N) 2790 3870 4180 2200 3300 3340
Bl (N) 3870 2790 4180 3380 3300 3790
Ap (N) 6250 5470 5910 6970 5960 6030
Bp (N) 5470 6240 5910 6100 5960 5620
