ASSEMBLY AND ANCHORING
6-13MS 3000 • 9095-032A
The width of any openings or gaps in the
floor must be sufficiently narrow that a
ball with a diameter of 15mm will not
pass through.
The platform extension must be able to
withstand a static load of 200kg on an
square area of 0,1x0,1m on the least
favourable part of the floor surface
without causing any permanent distortion.
1. Pull out the outriggers to the
required height and secure them
with locking pins.
2. Cover the outriggers with planks.
3. Fix cross strips or a right-angle
profile to the underside of the
planking and secure them to the
outriggers.
4. Mount the anchor ramp to the
outriggers.

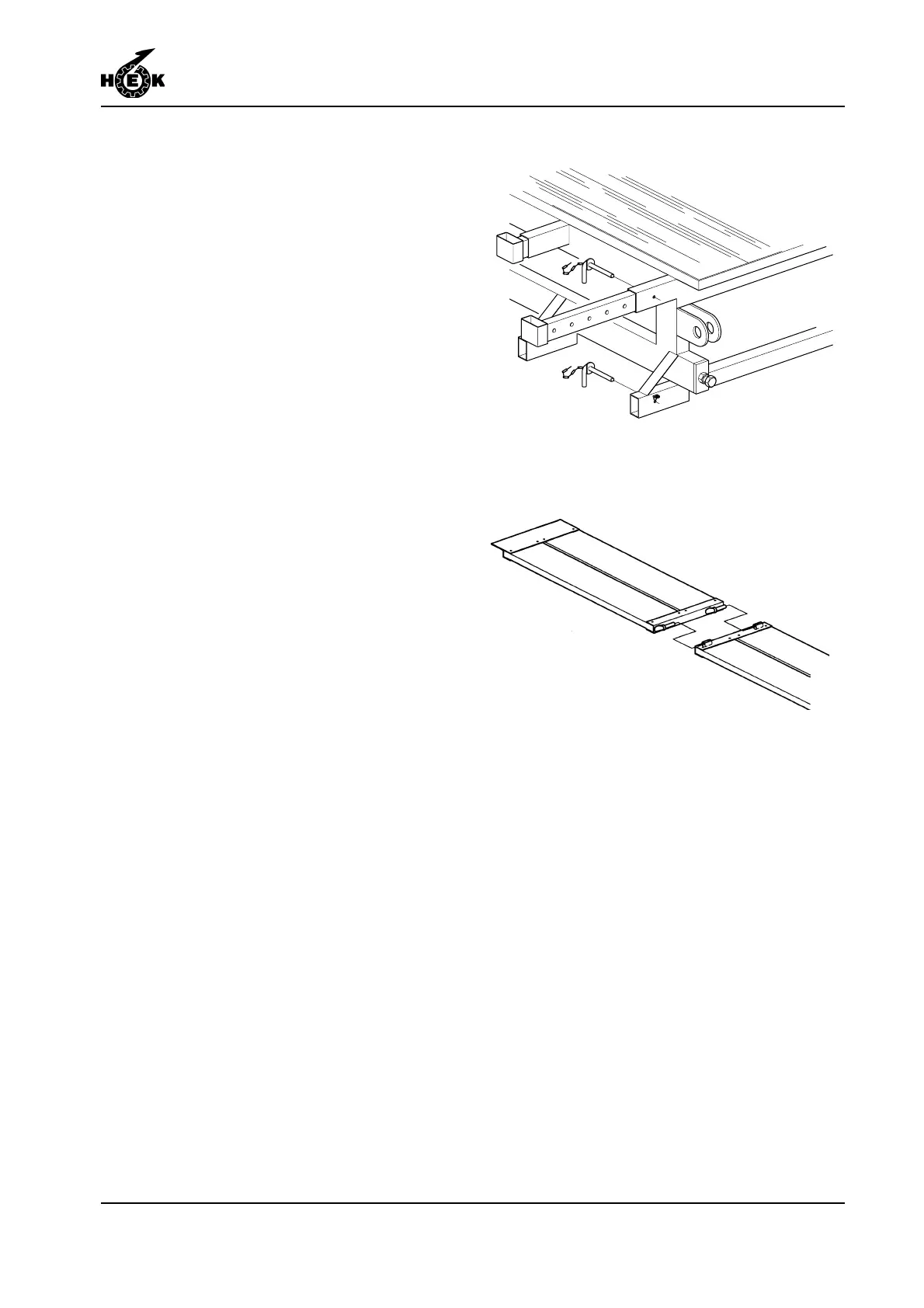

Fig.6-17 Anchor ramp
Fig.6-16 Outrigger platform extension
