ASSEMBLY AND ANCHORING
6-4 MS 3000 • 9095-032A
6.3 Positioning the mast climbing
work platform
A fence (height 1.10 m)
completely surrounding the
platform is compulsory. If the
distance between the platform
and the facade is 0,3 m - 0,5 m
a fence with a height of 0,7 m
can be used. If the distance
between the platform and the
facade is less than 0.3 metre a
fence is not compulsory but in
this case a kick board with a
height of 0,15m must be fitted.
Wheels of the chassis should
not have a bearing function
while assembly and operating
the platform.

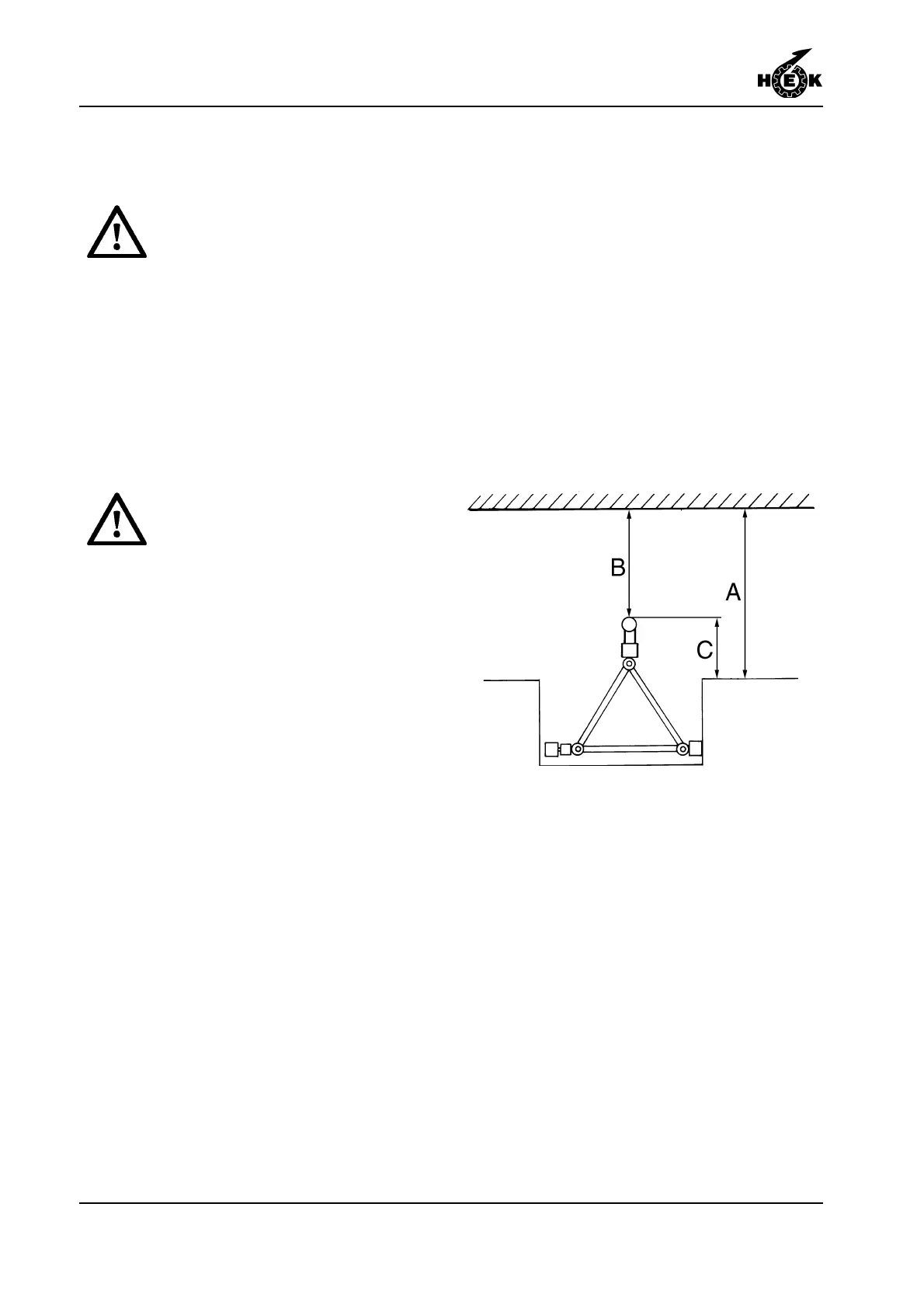

Distance to the facade with standard
anchoring.
A = 726-916 mm
B = 526-716 mm
C = 200 mm
There are two ways in which the mast
climbing work platform can be placed:
- freestanding on chassis
- anchored on chassis
Fig.6-3 Distance to the facade
