ASSEMBLY AND ANCHORING
6-5MS 3000 • 9095-032A
6.3.1Positioning the mast climbing
work platform
1. Position the chassis parallel to the
wall.
2. When the construction is to be free-
standing, the outriggers must be
fully extended and secured in
position. For an anchored
construction, it is possible to leave
the outriggers in the retracted
position. In this situation the
outriggers must be properly secured
and the first anchor must be placed
at a height of four metres.
3. Place the ground supports.
4. Unscrew the jacks until the wheels
no longer contact the ground and
adjust the machine to level. The
measurement must be done on two
sides of the mast with a spirit level
with a minimum length of 1 meter.
5. Check that the lower striker plate is
mounted.
6. Assemble the platform components
sequentially on both sides until the
desired length is attained. The
platform may not exceed the
maximum length.
7. Secure the platform pins by means
of "hairpin".
8. Adjust the platform elements so that
they are horizontal with the aid of
the adjusting bolts on the underside
of the platform.
9. The width of the platform can be
adjusted to fit the form of the
façade. See section 6.6.

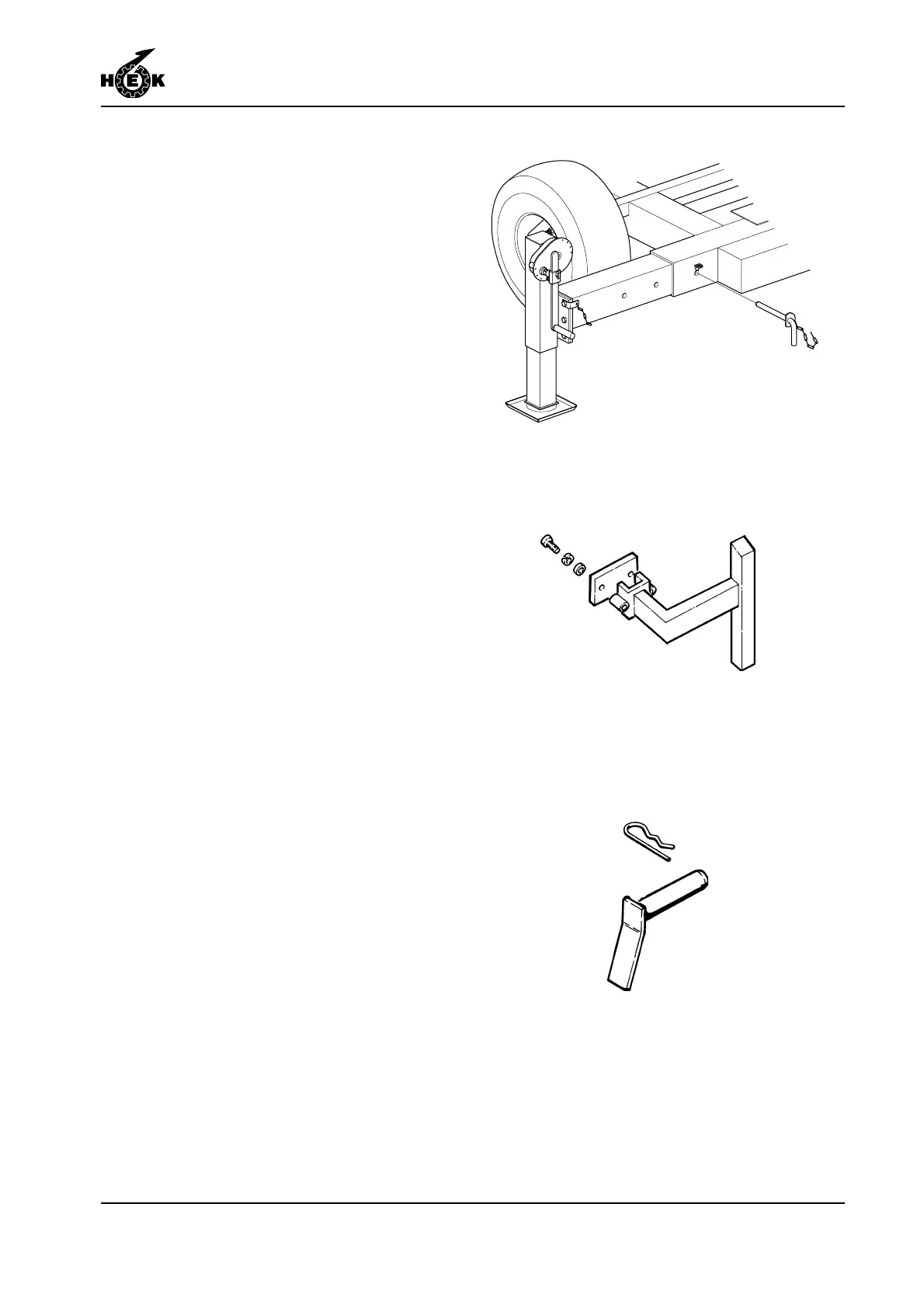

Fig.6-4 Locking pin outrigger chassis
Fig.6-6 Securing platform elements
Fig.6-5 Lower striker plate
