ASSEMBLY AND ANCHORING

6-6 MS 3000 • 9095-032A

10. Mount the steps and secure them

with locking pins.

11. Mount the platform posts on the

upper side of the platform and

secure them with "hairpins".

12. Mount the posts for the gate on the

longer side of the platform and

secure them with "hairpins".

13. Mount the platform posts on the

longer side of the platform and

secure them with "hairpins".

14. Mount the fencing and secure it with

"hairpins".

15. Mount the gate and check that the

gate safety switch is present on the

underside of the platform.

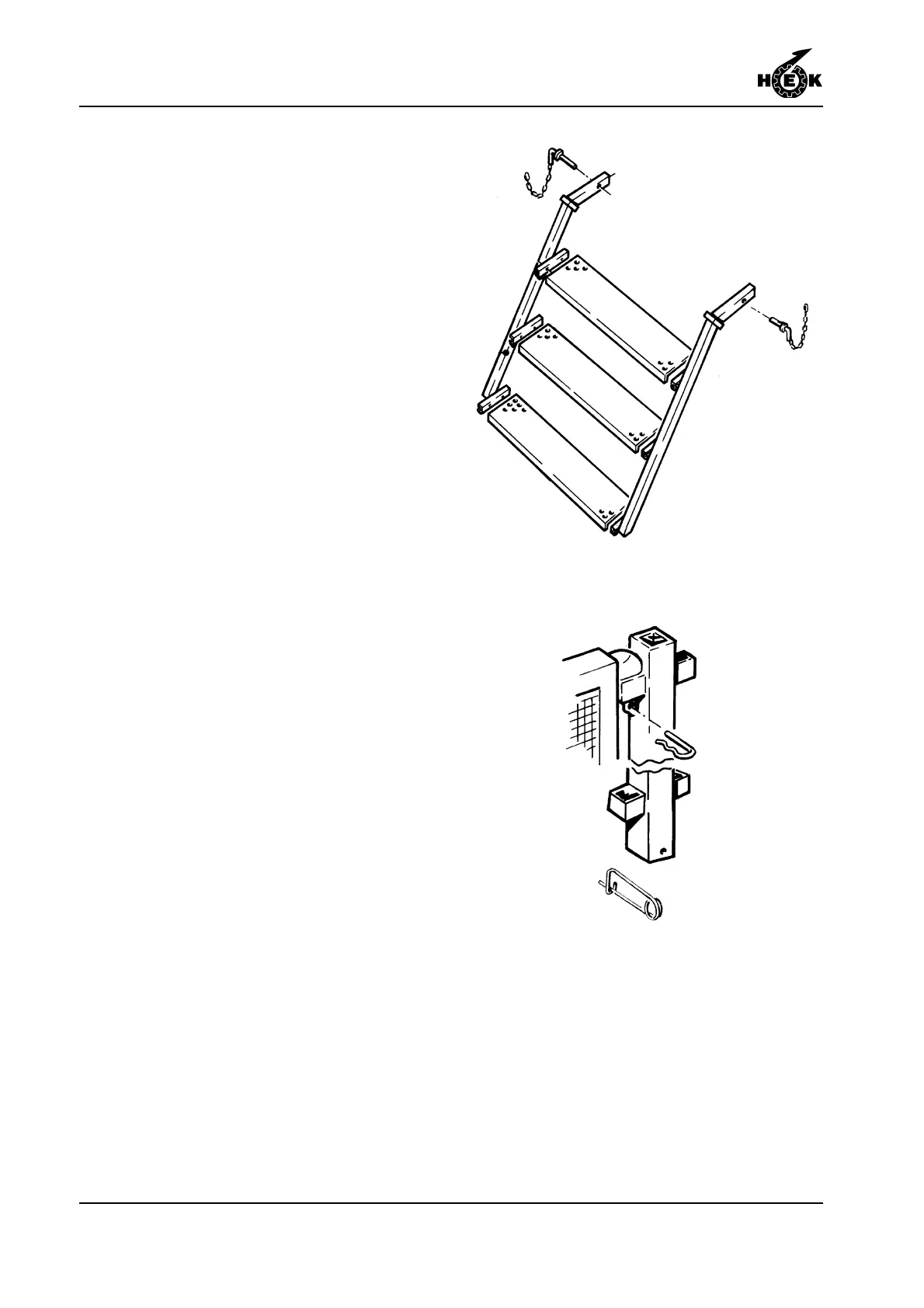

Fig.6-8 Securing platform posts and fences

Fig.6-7 Locking pin step
