S321 User Guide Chapter 3
Setup and Configuration Page 62 of 65

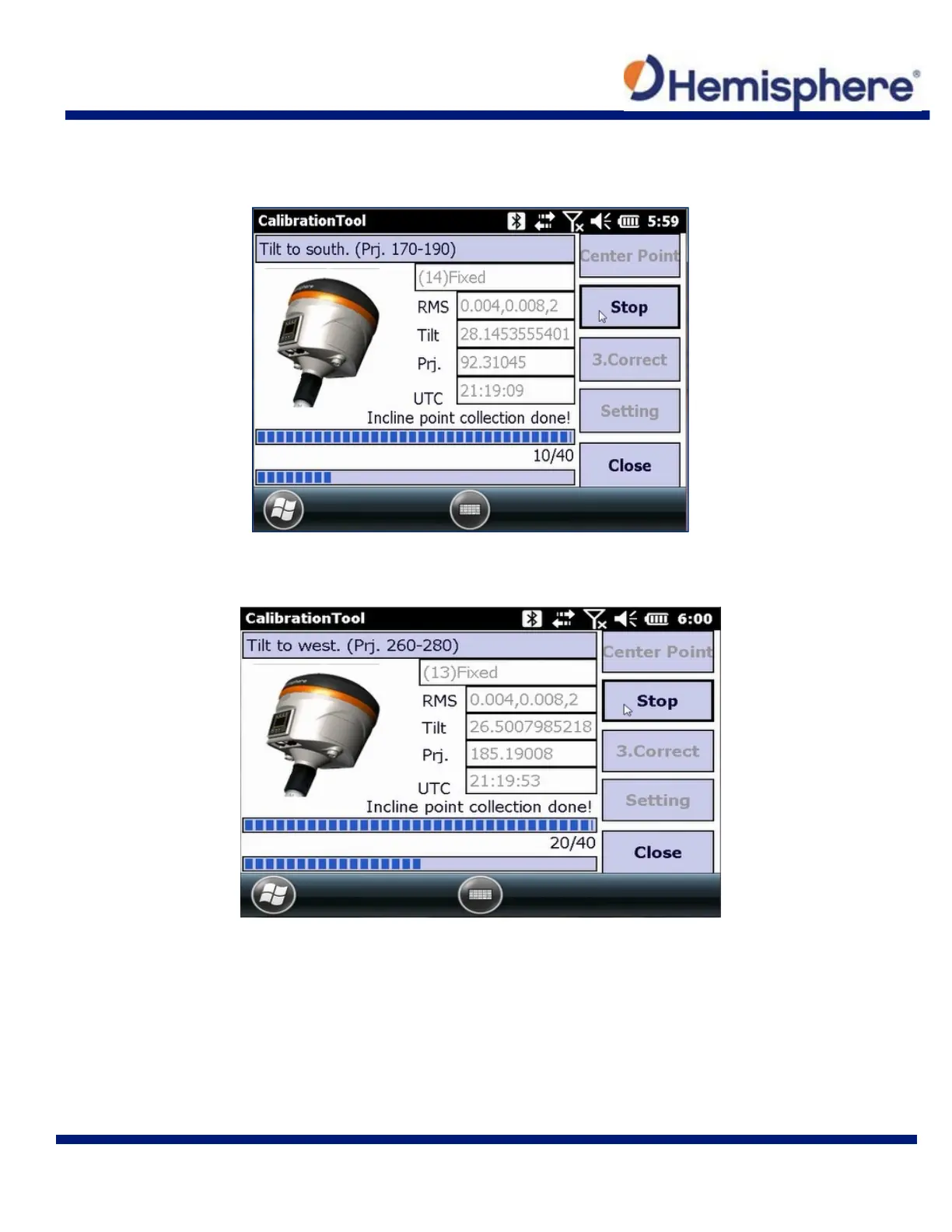

Tilt the S321 and survey pole to the SOUTH at approximately 25° to 35° angle. Below you will
see “Tilt” is the angle of the unit, and the “Prj” is the direction in which the device is facing.
Tilt the S321 and survey pole to the WEST at approximately 25° to 35° angle. Below you will see
“Tilt” is the angle of the unit, and the “Prj” is the direction in which the device is facing.
Tilt the S321 and survey pole to the NORTH at approximately 25° to 35° angle. Below you will
see “Tilt” is the angle of the unit, and the “Prj” is the direction in which the device is facing.
When the Incline Point calibration is complete, tap 3. Correct to submit the calibration to the
S321.
