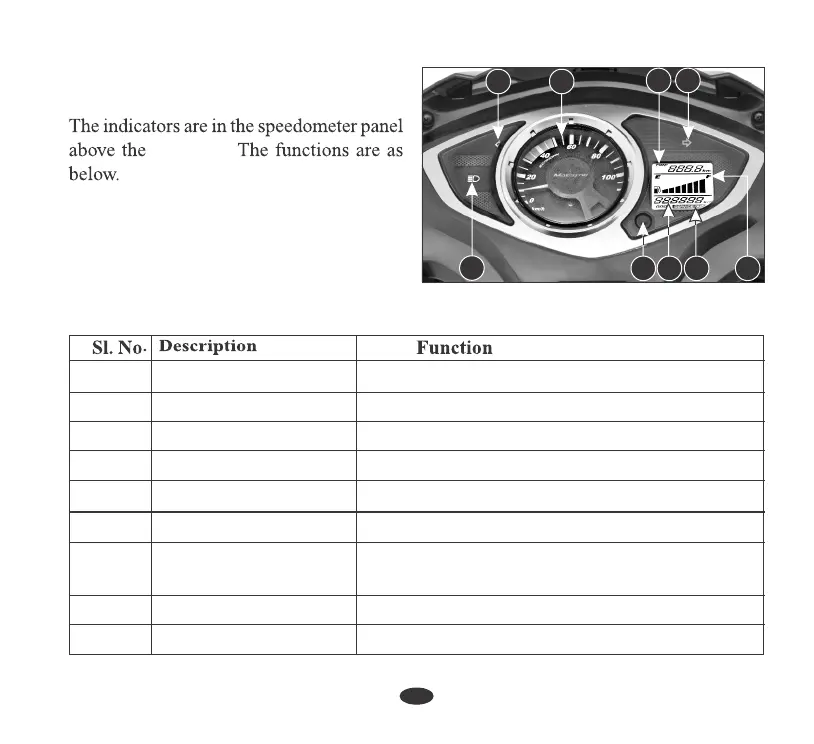

HERO MAESTRO - PART FUNCTIONS; INSTRUMENTS AND INDICATORS

1 High beam indicator Light glows when headlamp is in Hi Beam
2 Reset button Button when long pressed resets tripmeter to zero.
3 Odometer Shows accumulated mileage (page-15)
4 Service due indicator Displays when a service is due (page-16)
5 Fuel gauge Indicates approximate fuel quantity (page-15)
6 Turn signal indicator (R) Flashes when right turn signal switch is operated
7 Tripmeter Shows the distance traveled since the last reset.
(page-15)
9 Turn signal indicator (L) Flashes when left turn signal switch is operated
8 Speedometer Indicates riding speed
3 4
14
INSTRUMENTS AND INDICATORS
PART FUNCTIONS
67
2 5
1
89
headlamp.
