Idle speed : 1700 ± 100 r/min
(1) Throttle stop screw
62

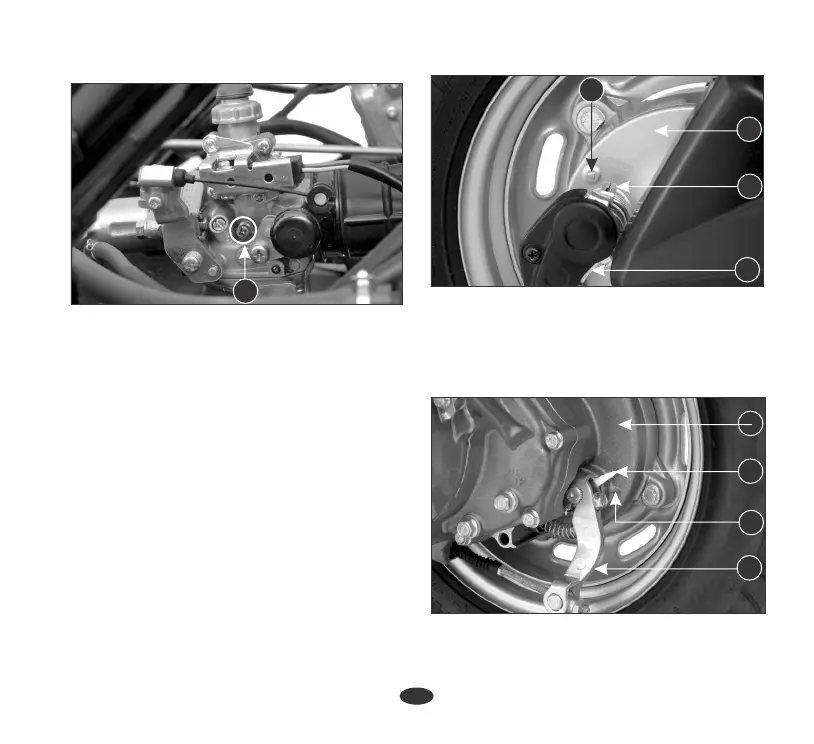

When the brake is applied, an arrow mark
(1) on the brake arm (2) moves towards a
reference mark (3) on the brake panel (4).
The front and rear brakes are equipped
with brake wear indicators.
If the arrow aligns with the reference mark
on full application of the brake, the brake
shoes must be replaced.
Visit your Authorised Hero MotoCorp
workshop for this service.
BRAKE SHOE WEAR
Refer to the Safety Precautions (page 51).
FRONT BRAKE
(1) Arrow (2) Brake Arm
(3) Reference mark (4) Brake Panel
1
3
1
2
4
REAR BRAKE
(1) Arrow (2) Brake Arm
(3) Reference mark (4) Brake Panel
4
1
3
2
