HERO MAESTRO - FEATURES; KEY SHUTTER OPERATION

29
FEATURES

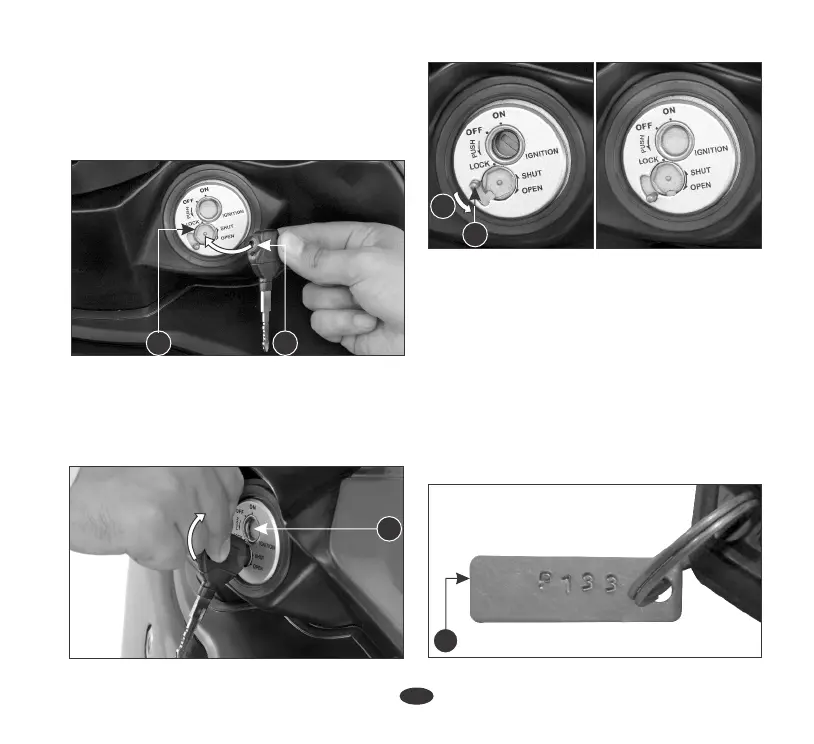

KEY SHUTTER
To unlock the steering, open the key shutter
by aligning & inserting the hexagonal
shape shutter key (2) into the key slot (1).
Rotate the shutter key clockwise, the
shutter (3) will open and the shutter pin
(4) will shift clockwise.
(1) Key slot (2) Shutter key
1
3
(4) Shutter pin (A) Turn to close
(3) Shutter
In this position the ignition key can be
inserted. To lock the shutter, remove the
ignition key and rotate the shutter pin
counterclockwise (A).
The shutter can only be opened with the key.
NOTE :
The plate key (5) number should be noted
down. This will be required for getting a
duplicate key.
(5) Plate key
5
2
4
A
