HERO MAESTRO - MAJOR COMPONENTS; BRAKES

17
Brakes are items of personal safety and
should always be maintained with proper
adjustments.
When one applies the left lever, front &
rear brakes activate jointly.

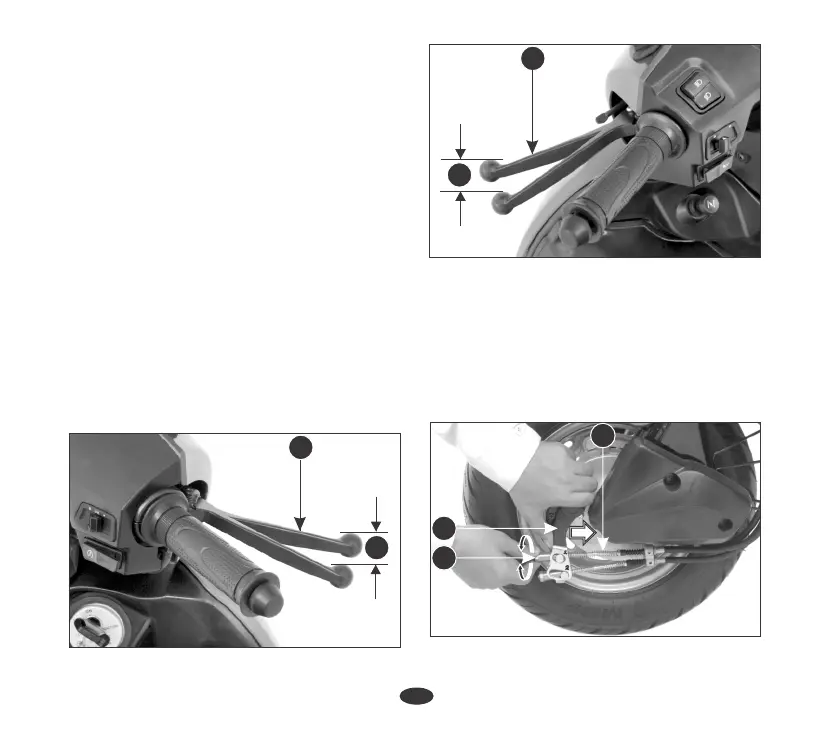

The distance, the front brake lever (1) and
combined brake lever (2) moves before each
brake starts to engage is called freeplay (3).
MAJOR COMPONENTS
BRAKES
(Information you need to operate this
scooter)
Measured at the tip of brake levers,
freeplay should be maintained at 10 - 20
mm.
3
(1) Front brake lever (3) Free play
3
2
(2) Combined brake lever (3) Free play
2. Turn the first adjuster nut (5) till you
cannot turn it by hand.
1. Push the brake arm (4) by hand in the
direction as shown.
Right hand front brake cable (A) on no.1 side
Adjustment:
A
4
5
(4) Brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
(i)
(ii)
