Head Lamp Case
Removal:
1. Remove the rear view mirrors (page 37).

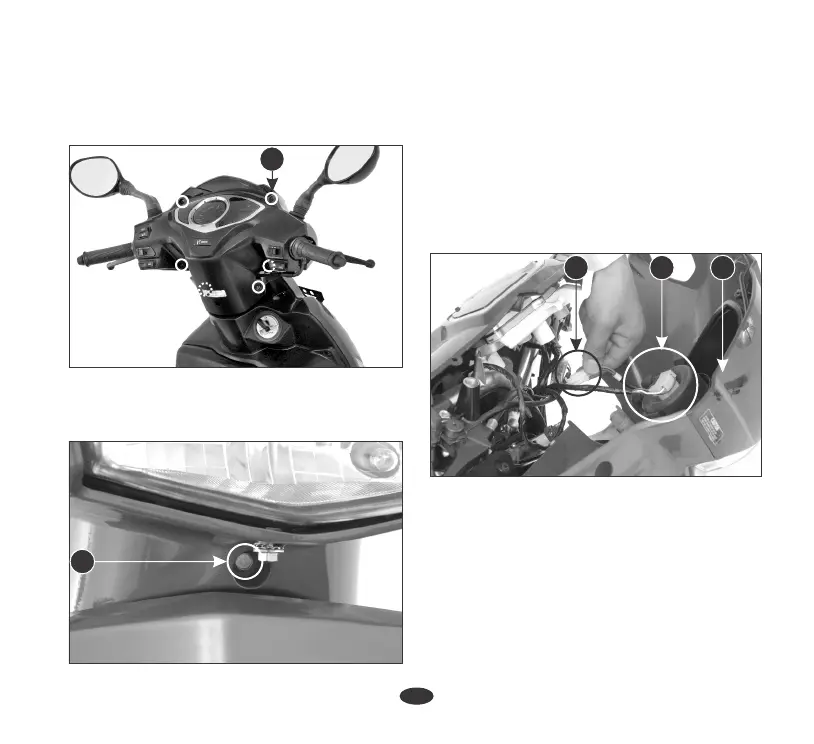

2. Remove the six screws (1)
1
(1) Screws
4. Pull the head lamp case (3) slightly up,
carefully release the tabs.
Installation:
Installation is in the reverse order of
removal.
5. Disconnect the head lamp connector (4)
and position lamp connector (5) and
remove the headlamp case .
Head Lamp Focus
Vertical Adjustment
Head lamp focus is factory preset.
However in case of adjustment required
please follow the steps as given.
(3) Head lamp case (4) Headlamp connector
(5) Position lamp connector
5 4 3
(2) Bolt
2
3. Remove the front bolt (2) in the head
lamp cover.
