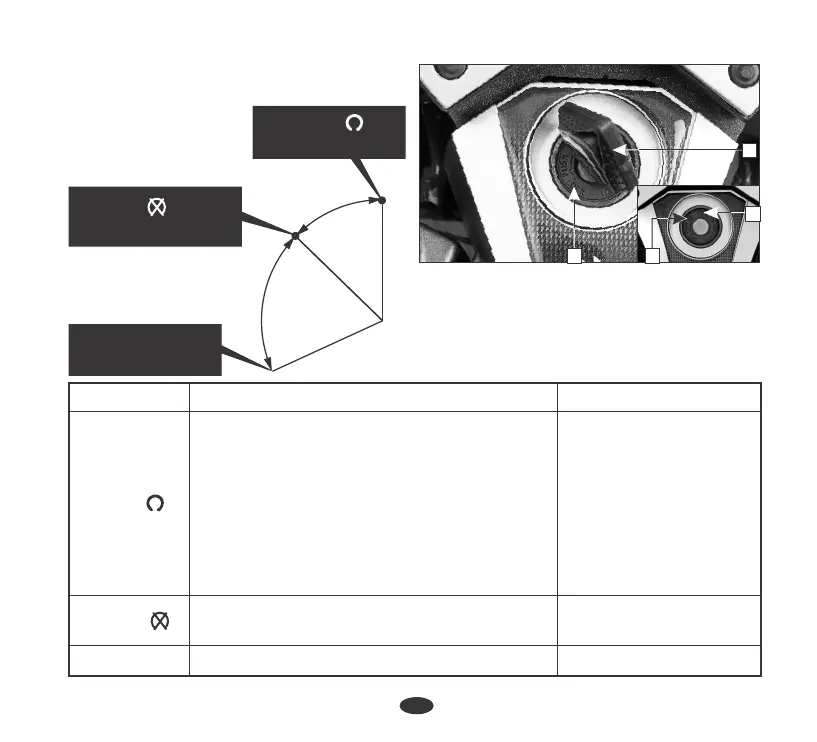

HERO XTREME - Ignition Switch and Controls

The LCD panel illuminates & initial display of
multi function digital segments are displayed. The
tachometer needle and the fuel gauge needle will
swing to the maximum scale once and back to its
normal position. The engine can be started. Turn
signal lamp, Horn, Tail/Stop lamp, Fuel gauge,
Pass lamp, Position lamp & Neutral indicator will
be functional.
Key cannot be removed
Engine cannot be started and no electrical
system will be functional.
Key can be removed
Steering can be locked
Key can be removed
“LOCK”
“ON” ( )
“OFF” ( )
“LOCK” Position
Ignition switch
(1) Ignition key
(2) Lock position
(3) “OFF” position
1
2 3
4
11
( )
“OFF”
Position/Lock Open
“ON”
Position
( )
Key Removal
Function
Key Position
