PARTS FUNCTION

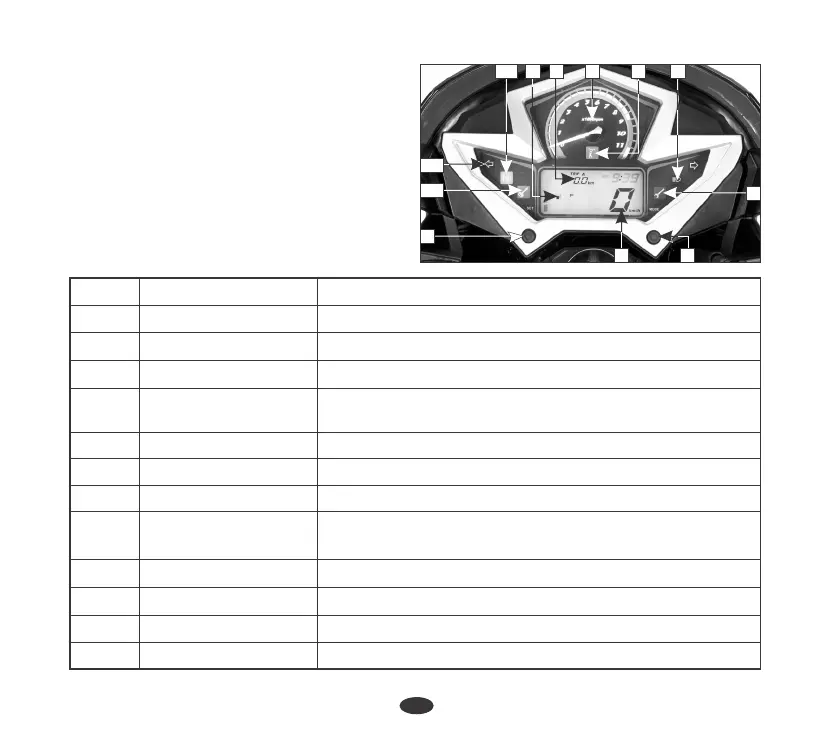

Instruments and Indicators
The indicators are in the speedometer panel
above the headlamp. The functions are as
below.
3
1
2
4
678 5910
11
12
Sl. No. Description Function
(1)
(2)
(3)
Set button
Button when long pressed resets tripmeter to zero.
Mode button
Switches display between Odometer, Tripmeter-A & B
Odometer
Shows accumulated mileage (page-13)
High beam indicator Light glows when headlamp is in Hi-Beam
(4)
Service reminder
indicator
Display when a service is due (page 13)
Side stand indicator
Light glows when vehicle is parked on the side stand
Speedometer
Indicates riding speed
Tripmeter A & B
Shows the distance traveled during a trip after setting
to zero (page-13)
Fuel gauge Indicates approximate fuel quantity
Neutral indicator Light glows when vehicle is in neutral position
Turn signal indicator Flashes when turn signal switch is operated
Immobilizer indicator
Light glows and goes off when ignition key is turned “ON”
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
10
