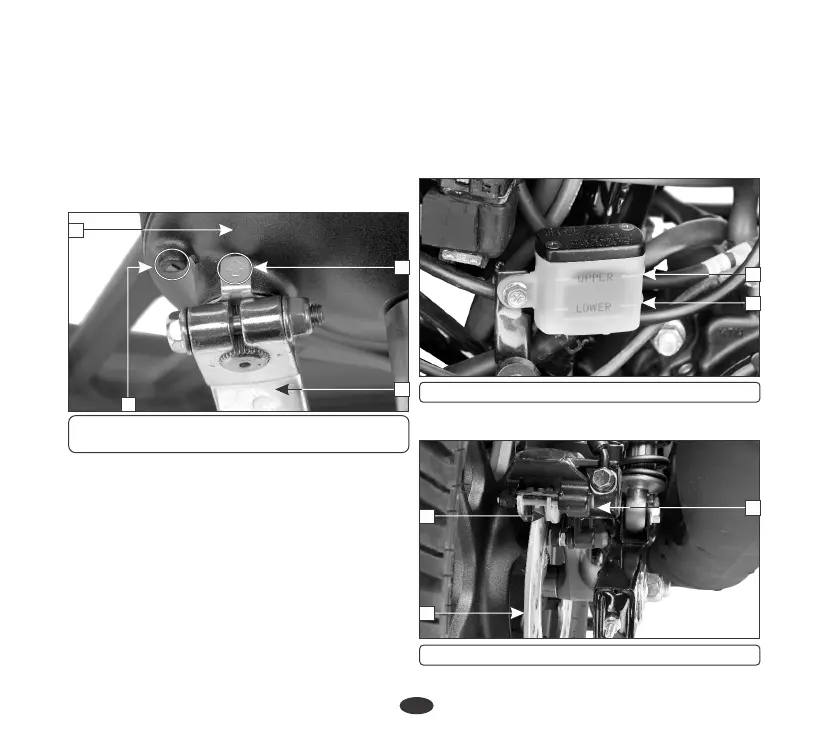

When the brake is applied, an arrow (1),
fixed to the brake arm (2), moves towards a
reference mark (3) on the brake panel (4).
If the arrow aligns with the reference mark
on full application of the brake, the brake
shoes must be replaced.
BRAKE WEAR INDICATORS
REAR BRAKE WEAR INDICATION
Reservoir
decreases gradually due to piston movement
to compensate pad wear. If the level decreases
abruptly, check for the leakages in the brake
system and consult your Authorised Hero
MotoCorp workshop.
3
1
2
4
(3) Reference mark (4) Brake panel
(1) Arrow (2) Brake arm
Refer to the safety precautions on (page 29).
Location : Inside right side cover next to the
battery.
Reservoir (1)
REAR BRAKE
Disc type
Brake fluid recommended :
Fluid level-Ensure that the brake fluid level
does not fall below "Lower" mark (2) on the
reservoir parallel to the ground. The level
Castrol Q Stop DoT 4/DoT 3.
1
2
(1) Upper level (2) Lower level
Rear Caliper
3
4
5
(3) Rear caliper (4) Brake pads (5) Disc
44
