HERO XTREME - Oil Screen Filter & Centrifugal Filter; Spark Plug

î Fill the crankcase with clean engine oil as
per specification.
î Disconnect the clutch cable (1), remove the
kick start pedal (2).
î Reinstall the filter screen with the tapered
end facing in.
CENTRIFUGAL FILTER
OIL SCREEN FILTER &
î Remove the oil filter screen (5) and wash it
in clean non flammable or high flash point
solvent (kerosene).
î Drain the engine oil throughly (page 20).
î Remove the kick stopper (3) and remove
the right crankcase cover (4).
3
1
2
4

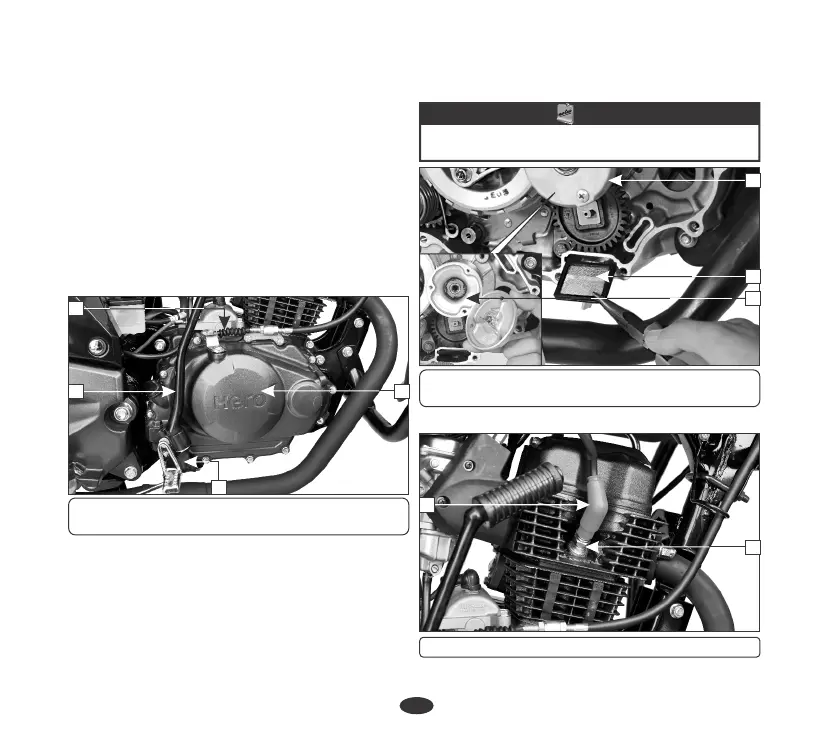

(1) Clutch cable (2) Kick starter pedal
(3) Kick stopper (4) Right crankcase cover
î Remove centrifugal filter cover (6) & clean
the centrifugal filter (7) with non flammable
or high flash point solvent (kerosene).
î Reinstall the centrifugal filter cover, right
crankcase cover and connect the clutch
cable. Install kick stopper and kick start
pedal.
Clean filters as specified in the maintenance
schedule. Ensure to replace gasket once removed.
NOTE
6
5
7
(5) Oil filter screen (6) Centrifugal filter cover
(7) Centrifugal filter
SPARK PLUG
1
2
(1) Noise suppressor cap (2) Spark plug
32
