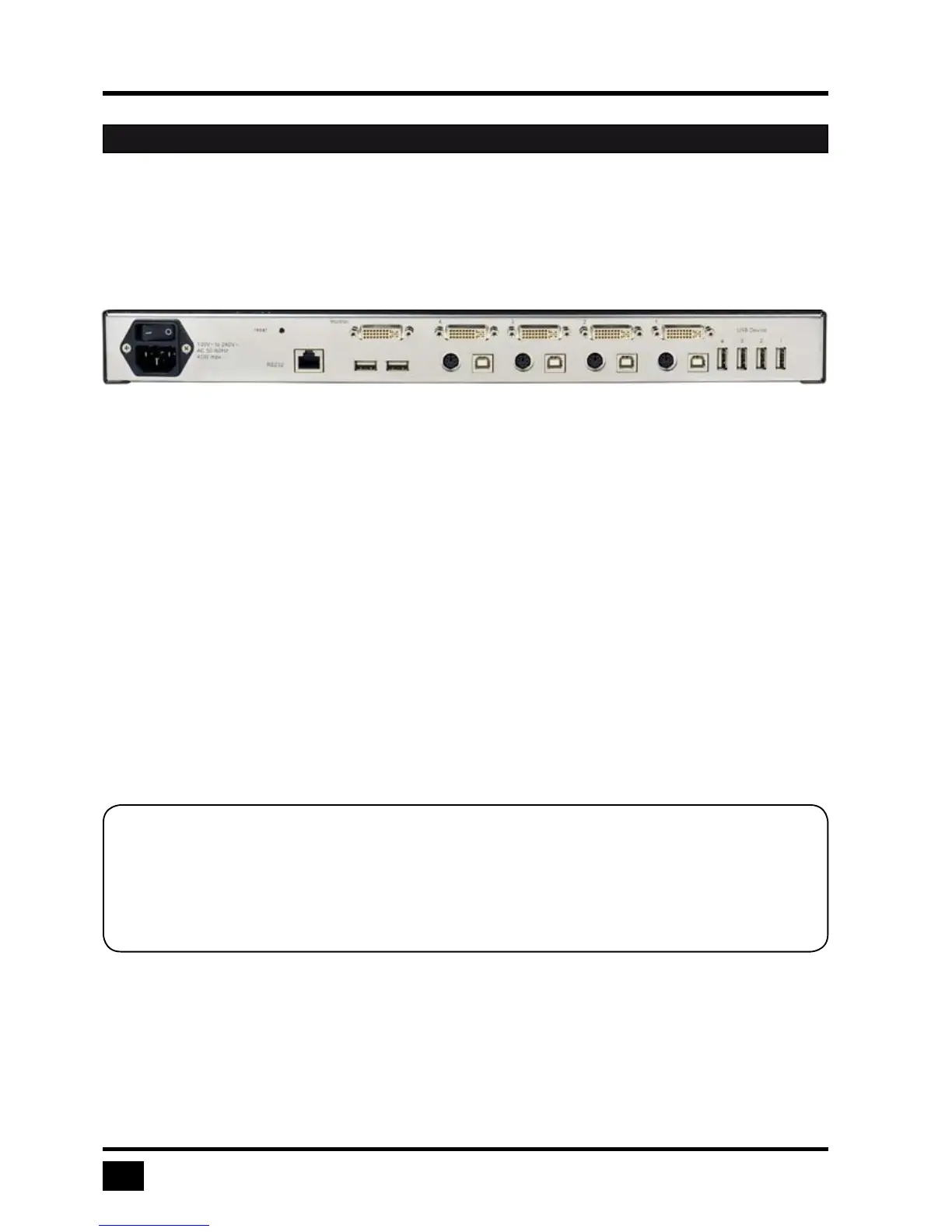

REAR PANEL
The rear panel of V-Switch quad II features four input source/computer ports, the console port (KVM), the serial
RS232 port, four transparent high-speed USB 2.0 device ports, the power connection, and a reset button.
1 2 3 4
5 6 7 8
1 - Power
2 - Reset
3 - Monitor / DVI-I output
4 - Four DVI-I inputs
5 - RS232 / RJ45 port
6 - USB for keyboard, mouse, touch or trackball (console)
7 - USB or PS2 keyboard and mouse (computer)
8 - Four transparent high-speed USB 2.0 ports
1 - Power
Plug for enclosed power cable.
2 - Reset
Press this button, using a suitable pointed object (e.g. ballpoint pen), for an entire reset of V-Switch quad II.
3 - Monitor / DVI-I output
Connect your analog or digital display to this DVI-I port.
HARDWARE
Note:
Due to the “keep alive” function of keyboard and mouse, turning power off/on resets only the video
circuit.
If you experience problems with mouse or keyboard, we therefore recommend executing a complete
RESET by either pressing the RESET button on the rear panel or by simultaneously pressing
buttons 3 and 4 on the front panel for longer than 4 seconds (see page 7 – Hardware Reset).
